Engine Front Cover: Removal
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING -- ESCAPE, ESCAPE HYBRID, MARINER & MARINER HYBRID .
- Remove the accessory drive belt and the smooth idler pulley. For additional information, refer to ACCESSORY DRIVE - 2.5L .
- Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
- Remove the engine mount. For additional information, refer to ENGINE MOUNT .

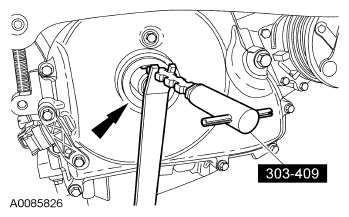

- Using the Oil Seal Remover, remove the crankshaft front oil seal.
- Remove the 3 bolts and the coolant pump pulley.
- Remove the 2 bolts and the accessory drive belt idler pulley and bracket.
- Disconnect the Crankshaft Position (CKP) sensor electrical connector.
- Remove and the 2 bolts and the CKP sensor.
- Remove the bolts, stud bolt and the engine front cover.
NOTE:
Use care not to damage the engine front cover or the crankshaft when removing the seal.
