Radiator Grille - Milan
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

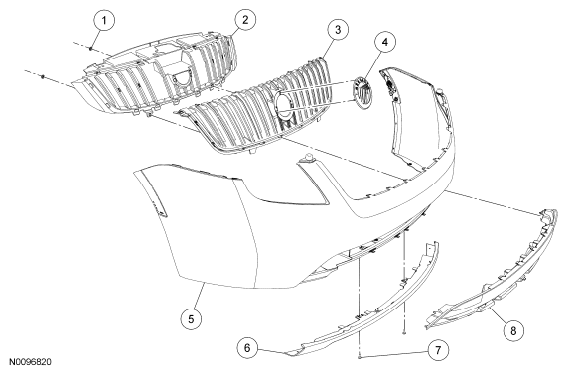

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W707501 | Upper radiator grille nut (2 required) |
| 2 | 8A164 | Upper radiator grille reinforcement |
| 3 | 8150 | Upper radiator grille |
| 4 | 8B262 | Badge |
| 5 | 17C831 | Front bumper cover |
| 6 | 8150-C | Front bumper cover valance |
| 7 | W706805 | Front bumper cover valance screw (2 required) |
| 8 | 8150-D | Lower radiator grille |
All radiator grilles
- Remove the front bumper cover. For additional information, refer to BUMPER COVER -- FRONT
.
Upper radiator grilles
- Remove the upper radiator grille nuts.
- Remove the upper radiator grille.
- Press the upper radiator grille tabs outward to release the upper radiator grille from the bumper cover.
Lower radiator grilles
- Press the 12 tabs inward on the lower radiator grille to release it from the front bumper cover.
- Remove the lower radiator grille.
All radiator grilles
- To install, reverse the removal procedure.
