Instrument Panel Dimmer Switch: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

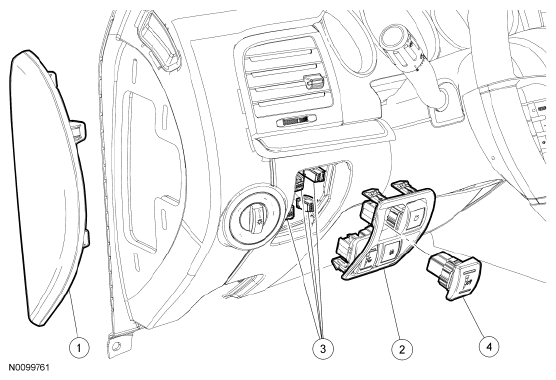

Fusion/Milan
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5404481 | Instrument panel side finish panel |
| 2 | 5404338 | Switch bezel |
| 3 | - | Instrument panel dimmer switch electrical connectors (part of 14401) |
| 4 | 11961 | Instrument panel dimmer switch |

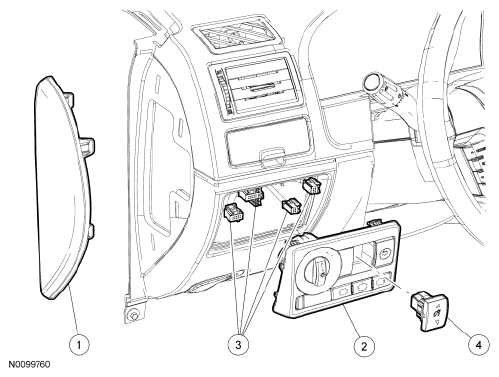

MKZ
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5404481 | Instrument panel side finish panel |
| 2 | 5404338 | Switch bezel |
| 3 | - | Instrument panel dimmer switch electrical connectors (part of 14401) |
| 4 | - | Instrument panel dimmer switch |
