Fuel Tank Supports and Shields (All-Wheel Drive (AWD) Vehicles)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

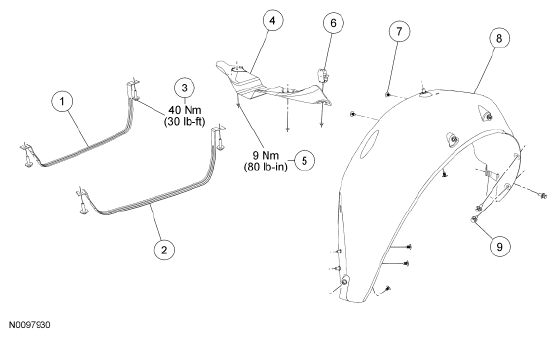

Fig 1: Exploded View Of Fuel Tank Supports & Shields (All-Wheel Drive Vehicles) With Torque Specifications
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 9092 | RH fuel tank strap |
| 2 | 9092 | LH fuel tank strap |
| 3 | W505444 | Fuel tank strap bolt (4 required) |
| 4 | 5411268 | Fuel tank filler pipe heat shield |
| 5 | W707142 | Fuel tank filler pipe heat shield nut (3 required) |
| 6 | 529330 | Fuel tank filler pipe heat shield bracket |
| 7 | W701259 | Splash shield pin-type retainer (6 required) |
| 8 | 5428371 | LR splash shield |
| 9 | N807379 | Splash shield rivet (3 required) |
