Special Tool(s)

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS TABLE

Courtesy of FORD MOTOR CO.

Powertrain Lift Table
014-00765

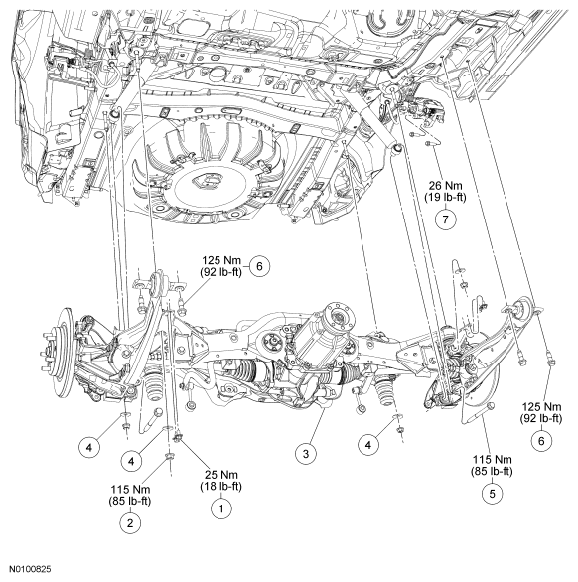

Fig 1: Identifying Subframe Replacement Components With Torque Specifications - Rear

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	W712755	Front bushing brace-to-body bolt (4 required)
2	W520515	Rear subframe nut (4 required)
3	5K067	Rear subframe
4	5E028	Rear subframe washers
5	W704586	Shock absorber lower bolt
6	W711493	Trailer arm-to-frame bolts (4 required)
7	-	Brake caliper anchor plate bolts (4 required)

NOTE: Suspension fasteners are critical parts because they affect performance of vital parts and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

All vehicles

Remove the rear wheels. For additional information, refer to REMOVAL .
With a wax pencil, mark the relationship alignment of the rear subframe to the underbody at the mounting locations.

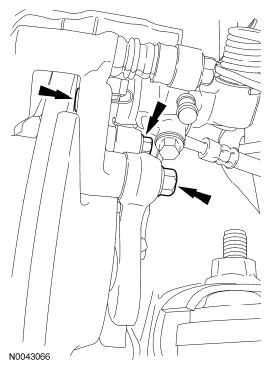

Fig 2: Marking Relationship Alignment Of Rear Subframe To Underbody At Mounting Locations
Courtesy of FORD MOTOR CO.
Remove the LH and RH rear lower arms. For additional information, refer to REMOVAL AND INSTALLATION .
Remove the catalytic converter, muffler and tailpipe as an assembly.
All-Wheel Drive (AWD) only
Remove the 4 driveshaft bolts.
- To install, tighten to 83 Nm (61 lb-ft).
NOTE: Index-mark the rear axle pinion flange and the driveshaft yoke.

Fig 3: Locating Driveshaft Bolts
Courtesy of FORD MOTOR CO.

All vehicles
Remove the bolt from the LH and RH wheel speed sensors.

Fig 4: Locating LH & RH Wheel Speed Sensors Bolt
Courtesy of FORD MOTOR CO.
Remove the RH and LH wheel speed sensor nuts from the stud and position aside.

Fig 5: Locating RH & LH Wheel Speed Sensor Nuts
Courtesy of FORD MOTOR CO.

AWD only
Disconnect the differential electrical connector on the LH side of the subframe.

Fig 6: Locating Differential Electrical Connector On LH Side Of Subframe
Courtesy of FORD MOTOR CO.

All vehicles
Remove the 4 bolts (2 each side) from the rear hub spindle-to-brake caliper.
- To install, tighten to 59 Nm (44 lb-ft).
Fig 7: Locating Rear Hub Spindle-To-Brake Caliper Bolts
Courtesy of FORD MOTOR CO.
Position the brake calipers aside using mechanic's wire. It is not necessary to disconnect the hydraulic brake lines.

Fig 8: Locating Brake Calipers
Courtesy of FORD MOTOR CO.
Remove the bolts from the parking brake cable-to-trailing link bracket.
- To install, tighten to 22 Nm (16 lb-ft).
Fig 9: Locating Parking Brake Cable-To-Trailing Link Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove and discard the rear shock-to-trailing link lower bolts and flagnuts.
- To install, tighten to 115 Nm (85 lb-ft) with the suspension at the bushing fastener tightening position.
Fig 10: Locating Rear Shock-To-Trailing Link Lower Bolts & Flagnuts
Courtesy of FORD MOTOR CO.
Remove the 4 bolts and cone washers (2 each side) from the trailing links-to-vehicle body.
- To install, tighten to 103 Nm (76 lb-ft).
Fig 11: Locating Trailing Links-To-Vehicle Body Bolts & Cone Washers
Courtesy of FORD MOTOR CO.

NOTE: The rear subframe must be secured to the lifting table. The rear subframe can become unstable and fall from the lifting table.

NOTE: For All-Wheel Drive (AWD) vehicles, the rear differential is removed with the rear subframe.
Position the Powertrain Lift Table under the rear subframe.

Fig 12: Positioning Powertrain Lift Table
Courtesy of FORD MOTOR CO.
Remove the 4 front (2 each side) bushing brace-to-body bolts.
- To install, tighten to 25 Nm (18 lb-ft).
Fig 13: Locating Front Bushing Brace-To-Body Bolts
Courtesy of FORD MOTOR CO.
Remove the 2 front (1 each side) mounting nuts and washers.
- To install, tighten to 115 Nm (85 lb-ft).
Fig 14: Locating Front Mounting Nuts & Washers
Courtesy of FORD MOTOR CO.
Remove the 2 rear mounting nuts.
- To install, tighten to 115 Nm (85 lb-ft).
Fig 15: Locating Rear Mounting Nuts
Courtesy of FORD MOTOR CO.
Remove the rear subframe.
Transfer the components as necessary.
To install, reverse the removal procedure.
NOTE: Make sure the vehicle is at the correct vehicle ride height. For additional information, refer to RIDE HEIGHT MEASUREMENT .

Fig 16: Identifying Vehicle Correct Ride Height

Courtesy of FORD MOTOR CO.
