Transmission Fluid Cooler Tubes - 6F35: Removal

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Automatic transmission fluids are not interchangeable. The use of any fluid other than what is recommended for this transaxle will cause transaxle damage.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the upper transmission fluid cooler tube from the radiator.
    Fig 1: Locating Upper Transmission Fluid Cooler Tube
    G06275533Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the splash shield.
    Fig 2: Locating Splash Shield Bolts
    G06275534Courtesy of FORD MOTOR CO.
  4. Remove the radiator splash shield.
    1. Remove the 6 screws.
    2. Remove the 4 retainers.
    Fig 3: Identifying Radiator Splash Shield Retainers
    G06275558Courtesy of FORD MOTOR CO.
  5. Disconnect the lower transmission fluid cooler tube from the radiator.
    Fig 4: Locating Lower Transmission Fluid Cooler Tube
    G06275536Courtesy of FORD MOTOR CO.
  6. Remove the transmission fluid cooler tube secondary latches.
    Fig 5: Locating Transmission Fluid Cooler Tube Secondary Latches
    G06275560Courtesy of FORD MOTOR CO.
  7. Using the Transmission Cooler Line Disconnect Tool, disconnect the transmission fluid cooler tubes.
    Fig 6: Disconnecting Transmission Fluid Cooler Tubes
    G06263492Courtesy of FORD MOTOR CO.
  8. Release the transmission fluid cooler tube retainers and remove the transmission fluid cooler tubes from the retainers.
    NOTE: When removing the transmission fluid cooler tubes from the retainers, do not remove the retainers from the shroud.
    Fig 7: Locating Transmission Fluid Cooler Tube Retainers
    G06275562Courtesy of FORD MOTOR CO.
  9. Remove the transmission fluid cooler tube retainer and remove the transmission fluid cooler tubes from the vehicle.
    Fig 8: Locating Transmission Fluid Cooler Tube Retainer
    G06275540Courtesy of FORD MOTOR CO.
  10. Remove the Air Cleaner (ACL) and the outlet pipe. For additional information, refer to REMOVAL AND INSTALLATION (2.5L) or REMOVAL AND INSTALLATION (3.0L 4V) .
  11. Remove the battery and battery tray. For additional information, refer to BATTERY AND BATTERY TRAY, ALL OTHER VEHICLES .
  12. Open the transmission fluid cooler tube retainers.
    Fig 9: Opening Transmission Fluid Cooler Tube Retainers
    G06275564Courtesy of FORD MOTOR CO.
  13. Remove the 2 transmission fluid cooler tube secondary latches.
    Fig 10: Locating Transmission Fluid Cooler Tube Secondary Latches
    G06275565Courtesy of FORD MOTOR CO.
  14. Using the Transmission Cooler Line Disconnect Tool, disconnect and remove the transmission fluid cooler tubes from the transaxle.

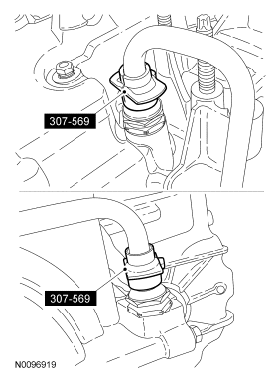

    Fig 11: Identifying Transmission Cooler Line Disconnect Tool
    G06275566Courtesy of FORD MOTOR CO.
