Exhaust Gas Recirculation (EGR) Valve: Material
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A | - |

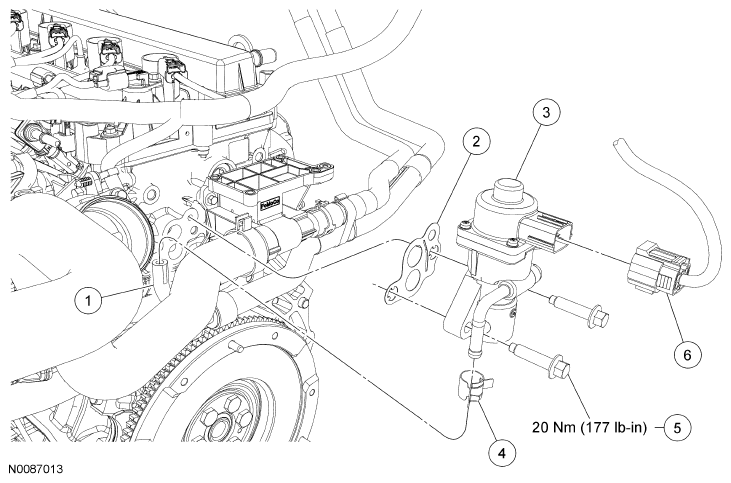

Fig 1: Identifying Exhaust Gas Recirculation (EGR) Valve Replacement Components With Torque Specifications
PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | EGR valve coolant hose (part of 18C266) |
| 2 | 9D476 | EGR valve gasket |
| 3 | 9D475 | EGR valve |
| 4 | W525952 | EGR valve coolant hose clamp |
| 5 | W500225 | EGR valve bolt |
| 6 | 14A464 | EGR valve electrical connector |
