Washer Pump and Reservoir - Hybrid
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

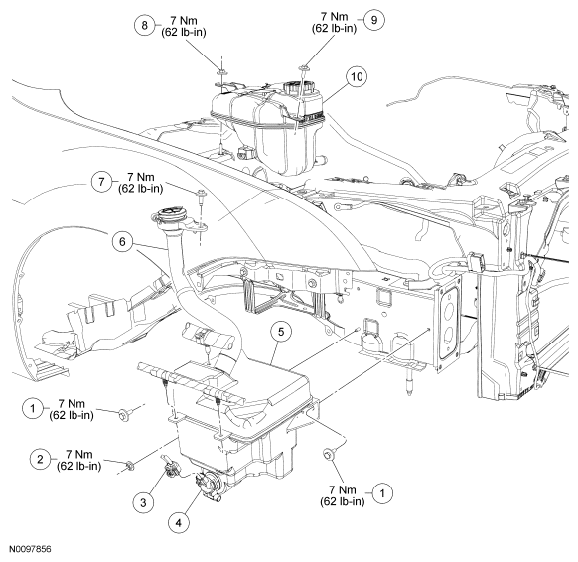

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W707399 | Windshield washer reservoir bolts (2 required) |
| 2 | W702751 | Windshield washer reservoir nut |
| 3 | 14A005 | Windshield washer pump electrical connector |
| 4 | 17664 | Windshield washer pump |
| 5 | 17618 | Windshield washer reservoir |
| 6 | 17618 | Windshield washer reservoir filler neck |
| 7 | W500214 | Windshield washer reservoir filler neck retaining bolt |
| 8 | W702751 | Coolant reservoir nut |
| 9 | W505252 | Coolant reservoir bolt |
| 10 | 8A080 | Coolant reservoir |
