Transmission Support CROSSMEMBER: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Install a suitable high-lift transmission jack.
Remove the wire harness from the rear crossmember.

Fig 1: Locating Wire Harness At Rear Of Crossmember
Courtesy of FORD MOTOR CO.
Remove the rear transmission mount nuts.

Fig 2: Identifying Transmission Support Insulator Nuts
Courtesy of FORD MOTOR CO.
Remove the LH crossmember bolts and nuts.
1. Loosen, but do not remove, the bolt and nut indicated.

  Fig 3: Removing LH Crossmember Bolts And Nuts
  Courtesy of FORD MOTOR CO.
Remove the RH crossmember bracket bolts and nuts.
1. Remove the bracket bolts and nuts.
2. Remove the bracket.

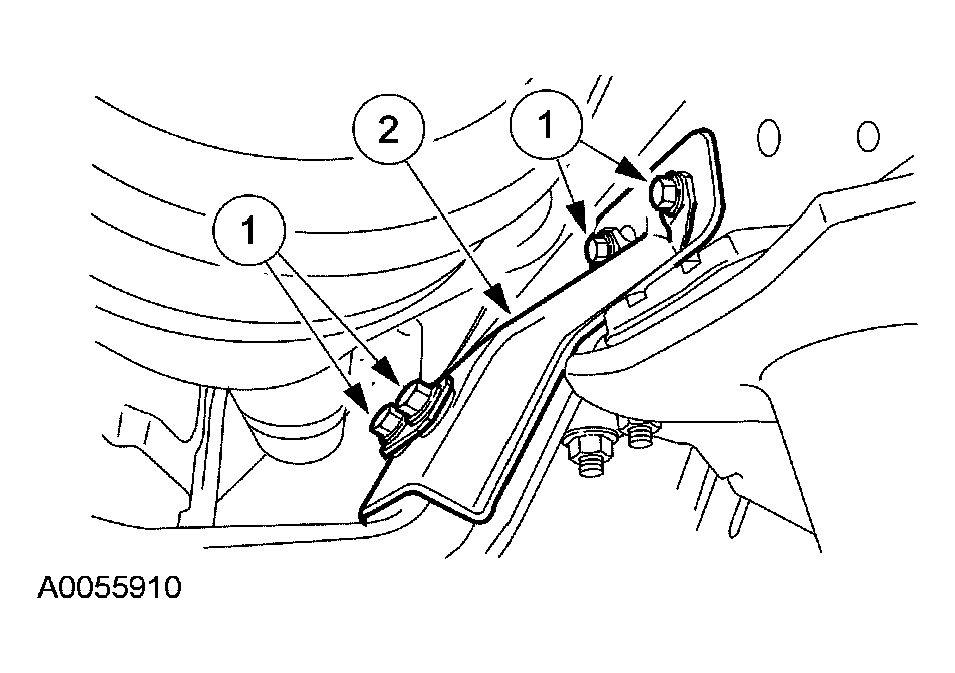

  Fig 4: Removing RH Crossmember Bracket Bolts And Nuts
  Courtesy of FORD MOTOR CO.
Remove the RH crossmember bolts and nuts.

Fig 5: Removing RH Crossmember Bolts And Nuts
Courtesy of FORD MOTOR CO.
Remove the LH crossmember bolt, nut and the crossmember.
1. Remove the bolt and nut
2. Remove the crossmember.

  Fig 6: Removing LH Crossmember Bolt, Nut And Crossmember
  Courtesy of FORD MOTOR CO.
