Thermostat Housing - 3.5L: Material
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Motorcraft® Premium Gold Engine Coolant with Bittering Agent (US); Motorcraft® Premium Gold Engine Coolant (Canada) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) | WSS-M97B51-A1 |
| Motorcraft® Specialty Green Engine Coolant with Bittering Agent (US); Motorcraft® Specialty Green Engine Coolant (Canada) VC-10-A (US); CVC-10-A (Canada) | WSS-M97B55-A |

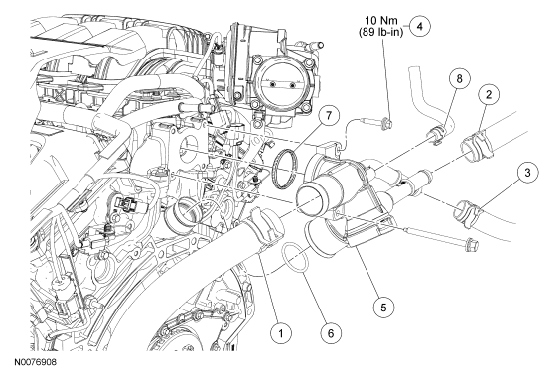

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 8B274 | Upper radiator-to-thermostat housing hose |
| 2 | 18C266 | Heater outlet hose |
| 3 | 18C266 | Heater inlet hose |
| 4 | W503279 | Thermostat housing bolt (2 required) |
| 5 | 8A586 | Thermostat housing |
| 6 | 8565 | O-ring seal |
| 7 | 8A571 | O-ring seal |
| 8 | 8B541 | Thermostat housing-to-degas bottle hose |
