2.5L and 3.0L Engines
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

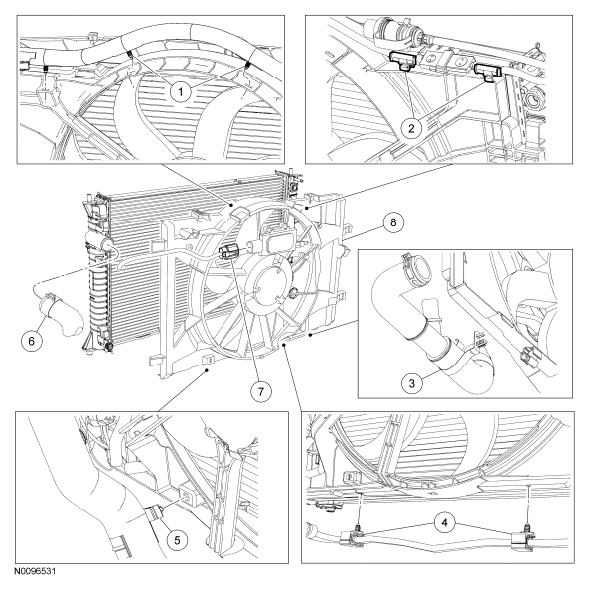

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 13A506 | Wiring harness retainers |
| 2 | 14A163 | Block heater retainers (part of 6B018) |
| 3 | - | RH lower radiator hose pin-type retainer (part of 8B273) |
| 4 | 256844 | Transmission fluid cooler tube retaining clips (automatic transmission only) (part of 7R081) |
| 5 | - | LH lower radiator hose pin-type retainer (3.0L only) |
| 6 | 8B274 | Upper radiator hose |
| 7 | 14A464 | Cooling fan motor electrical connector |
| 8 | 8C607 | Cooling fan motor and shroud |
