Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS TABLE
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent diagnostic tool |

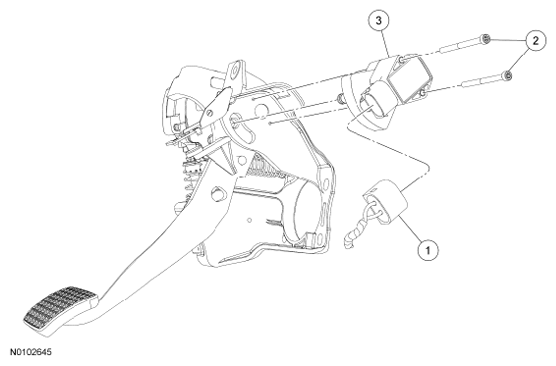

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake pedal angle sensor electrical connector (part of 14290) |
| 2 | - | Brake pedal angle sensor screws (2 required) (part of 14F385A) |
| 3 | 14F385A | Brake pedal angle sensor |
