Oil Pan - Automatic Transmission: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  3. Remove the generator. For additional information, refer to GENERATOR AND REGULATOR .
  4. Remove the cooling fan shroud. For additional information, refer to ENGINE COOLING .
  5. Remove the throttle body (TB) spacer. For additional information, refer to FUEL CHARGING AND CONTROLS - 6.8L (3V) .
  6. Drain the crankcase oil into a suitable container.
  7. Remove and discard the oil filter.
    Fig 1: Locating Oil Filter
    G03920097Courtesy of FORD MOTOR CO.
  8. Loosen the threaded shaft and position the oil cooler aside.
    Fig 2: Identifying Threaded Shaft
    G03920099Courtesy of FORD MOTOR CO.
  9. Remove the starter. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES .
  10. Install the special tools.
    Fig 3: Installing Special Tools
    G04647876Courtesy of FORD MOTOR CO.
    11. CAUTION: Only use hand tools when installing the RH engine mount nut or damage to the engine mount can occur.
    NOTE: RH shown, LH similar.
    Fig 4: Identifying Engine Mount Nuts
    G03920590Courtesy of FORD MOTOR CO.
  11. Remove the 6 engine mount nuts.
  12. Remove the 4 exhaust manifold-to-catalytic converter nuts.
    • To install, tighten to 40 Nm (30 lb-ft).
      Fig 5: Locating Exhaust Manifold-To-Catalytic Converter Nuts
      G03920889Courtesy of FORD MOTOR CO.
  13. Remove the nut and the starter wiring harness support bracket.
    Fig 6: Locating Starter Wiring Harness Support Bracket Bolt
    G03919905Courtesy of FORD MOTOR CO.
  14. Remove the nut and position the transmission oil cooler lines and bracket aside.
    Fig 7: Identifying Transmission Cooler Tube Support Bracket And Nut
    G03905682Courtesy of FORD MOTOR CO.
    15. CAUTION: Damage to the turbine shaft speed (TSS)/output shaft speed (OSS) sensors may occur and cause the transmission or torque converter operational concerns if the transmission is raised prior to removing TSS/OSS.
    CAUTION: Sensor bosses must be cleaned prior to removal and then plugged to prevent contamination from damaging internal components.
  15. If the vehicle is equipped with TSS and OSS sensors, remove the sensors and install plugs in the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - TORQSHIFT .
    16. CAUTION: Support the transmission on the oil pan rails only or internal transmission damage can occur.
  16. Install a suitable transmission jack and raise the transmission.
  17. Position the crossmember to the transmission mount and loosely install the nut.
    Fig 8: Locating Crossmember To Transmission Mount
    G03889185Courtesy of FORD MOTOR CO.
  18. Loosely install the 3 LH crossmember bolts.
    Fig 9: Installing LH Crossmember Bolts
    G03920815Courtesy of FORD MOTOR CO.
  19. Loosely install the 2 RH crossmember bolts and nuts.
    Fig 10: Installing RH Crossmember Bolts And Nuts
    G03920816Courtesy of FORD MOTOR CO.
  20. Using the special tools, raise the engine.
    Fig 11: Installing Special Tools
    G04647876Courtesy of FORD MOTOR CO.
  21. Remove the 2 bolts and the flywheel inspection plate.

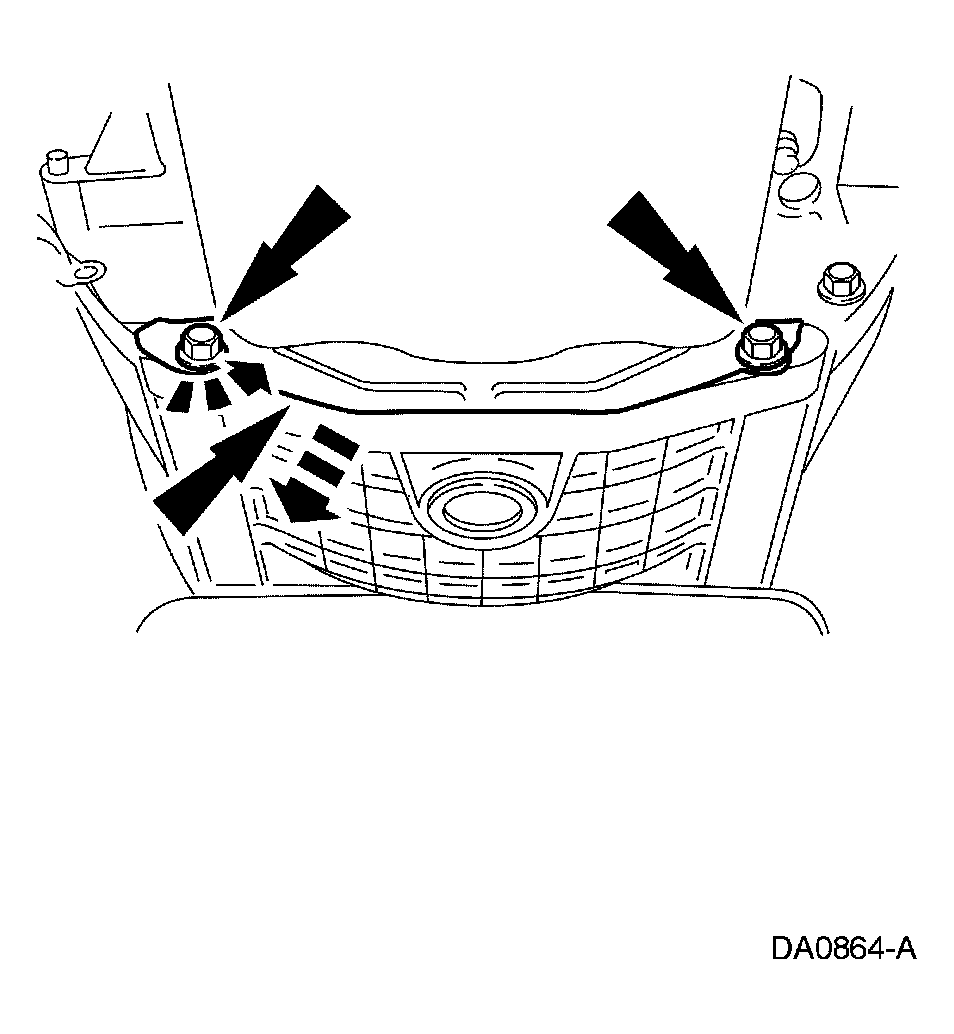

    Fig 12: Removing Bolts And Flywheel Inspection Plate
    G03905564Courtesy of FORD MOTOR CO.
  22. Remove the 18 bolts and partially lower the oil pan.
  23. Remove the 3 bolts and position the oil pump screen and pickup tube into the oil pan.
    24. NOTE: Be careful when removing the oil pan gasket. It is reusable.
  24. Remove the oil pan and the oil pump screen and pickup tube.
    • Inspect the oil pan gasket for damage.
    • If damaged, discard the oil pan gasket and the oil pan-to-oil pump gaskets.
    • Discard the oil pump screen and pickup tube O-ring seal.
