Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent diagnostic tool |
Transaxle Cooling - 6F35

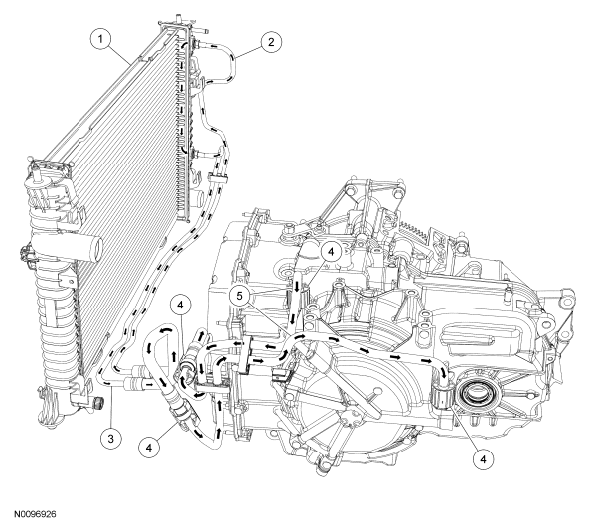

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 8005 | Radiator |
| 2 | 7R081 | Transmission fluid cooler supply tube assembly (supplies transmission fluid to the transmission fluid cooler from the transaxle) |
| 3 | 7R081 | Transmission fluid cooler return tube assembly (transmission fluid return tube from the transmission fluid cooler to the transaxle) |
| 4 | 7J081 | Secondary latches |
| 5 | 7H420 | Transaxle mounted transmission fluid cooler tubes |
When internal wear or damage has occurred in the transaxle, metal particles, clutch plate material or band material may have been carried into the torque converter and transaxle fluid cooler. These contaminants are a major cause of recurring transaxle troubles and must be removed from the system before the transaxle is put back into use. Refer to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING .
