Electrical Operation
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Solenoid operation:

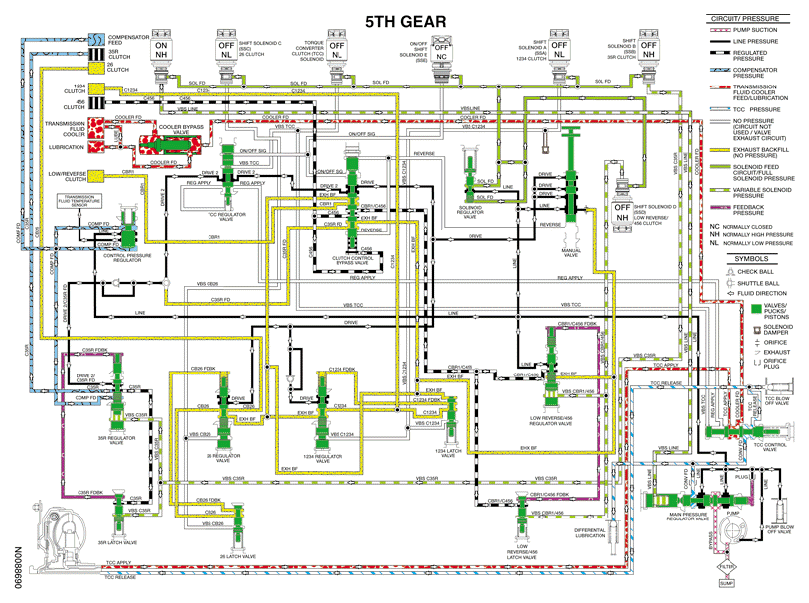

5th Gear Solenoid Operation Chart
5TH GEAR SOLENOID OPERATION CHART
| Base Selector Lever Position | PCM Commanded Gear | Shift Solenoid | ||||
|---|---|---|---|---|---|---|
| SSA (VFS) NL (1, 2, 3, 4) | SSB (VFS) NH (3, 5, R) | SSC (VFS) NL (2, 6) | SSD (VFS) NH (L, R/4, 5, 6) | SSE (On/Off) NC | ||
| D | 5 | Off | Off | Off | Off | Off |
NC = Normally closed
NH = Normally high
NL = Normally low
