External Sealing
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
The transaxle has the following parts to prevent external transmission fluid leakage:
- Gaskets
- Lip type seals
- O-ring seals
- Seal rings
- Seal grommets
- Thread sealant

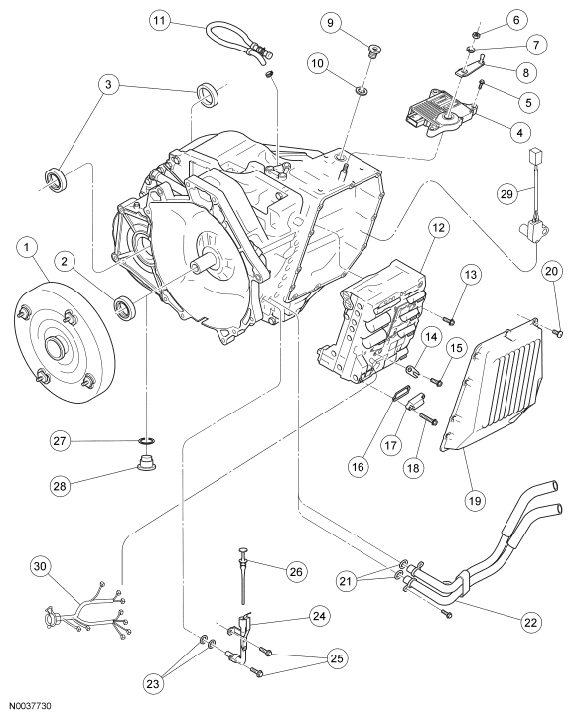

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | - | Torque converter hub seal |
| 3 | 1177 | Axle shaft seals |
| 4 | - | Transmission Control Module (TCM) |
| 5 | - | TCM bolt |
| 6 | 7045 | Manual control lever shaft nut |
| 7 | 7C208 | Manual control lever shaft nut washer |
| 8 | 7A256 | Manual control lever |
| 9 | 7A010 | Transmission fluid fill plug |
| 10 | 7E050 | Transmission fluid fill plug O-ring |
| 11 | - | Breather hose |
| 12 | - | Main control valve body assembly |
| 13 | - | Main control valve body bolt |
| 14 | - | Lock plate |
| 15 | - | Lock plate bolt |
| 16 | - | Suction cover gasket |
| 17 | - | Suction cover |
| 18 | - | Suction cover bolt |
| 19 | - | Main control valve body side cover |
| 20 | - | Main control valve body side cover bolt |
| 21 | 7J227 | Transmission fluid cooler O-rings |
| 22 | 7R081 | Transmission fluid cooler tube |
| 23 | 7E050 | Transmission fluid level indicator tube O-rings |
| 24 | 7A228 | Transmission fluid level indicator tube |
| 25 | 7A443 | Transmission fluid level indicator tube bolts |
| 26 | 7A228 | Transmission fluid level indicator tube |
| 27 | 7L101 | Transmission fluid drain plug gasket |
| 28 | 7A010 | Transmission fluid drain plug |
| 29 | 7M101 | Turbine Shaft Speed (TSS) sensor |
| 30 | 7G276 | Internal wire harness and Transmission Fluid Temperature (TFT) sensor |
