Oil Pump: Installation

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump assembly. Tighten the 4 bolts in the sequence shown in 2 stages:
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).
    NOTE: Clean the oil pump and cylinder block mating surfaces with metal surface prep.
    Fig 1: Identifying Oil Pump Assembly Bolt Tightening Sequence
    G06271868Courtesy of FORD MOTOR CO.
  2. Install the oil pump sprocket and bolt.
    • Tighten to 25 Nm (18 lb-ft).
  3. Install the chain onto the oil pump sprocket.
  4. Install the oil pump drive chain tensioner shoulder bolt.
    • Tighten to 10 Nm (89 lb-in).
    Fig 2: Locating Oil Pump Chain Drive Tensioner Shoulder Bolt
    G06095013Courtesy of FORD MOTOR CO.
  5. Install the oil pump drive chain tensioner and bolt. Hook the tensioner spring around the shoulder bolt.
    • Tighten to 10 Nm (89 lb-in).
    Fig 3: Locating Oil Pump Drive Chain Tensioner, Bolt & Tensioner Spring
    G06095014Courtesy of FORD MOTOR CO.
  6. Install the oil pump screen and pickup tube and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
  7. Clean all mating surfaces with metal surface prep.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces to sealant.
  8. Apply a 2.5 mm (0.09 in) bead of sealant gasket and sealant to the oil pan.
    NOTE: If the oil pan is not secured within 4 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

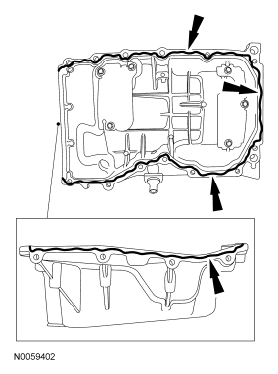

    Fig 4: Applying Silicone Gasket & Sealant
    G06271740Courtesy of FORD MOTOR CO.
  9. Position the oil pan onto the engine and install the 2 rear oil pan bolts finger-tight.
  10. Using a suitable straight edge, align the front surface of the oil pan flush with the front surface of the engine block.

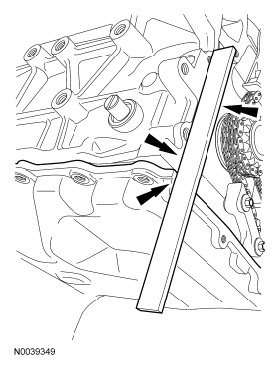

    Fig 5: Locating Front Surface Of Oil Pan Flush With Front Surface Of Engine Block
    G06271872Courtesy of FORD MOTOR CO.
  11. Install the remaining oil pan bolts.
    • Tighten in the sequence shown below to 25 Nm (18 lb-ft).
    Fig 6: Identifying Remaining Oil Pan Bolt Tightening Sequence
    G06271873Courtesy of FORD MOTOR CO.
  12. Install the 4 oil pan-to-bellhousing bolts.
    • Tighten to 48 Nm (35 lb-ft).
  13. Install the engine front cover. For additional information, refer to Installation .
  14. Fill the engine with clean engine oil.
