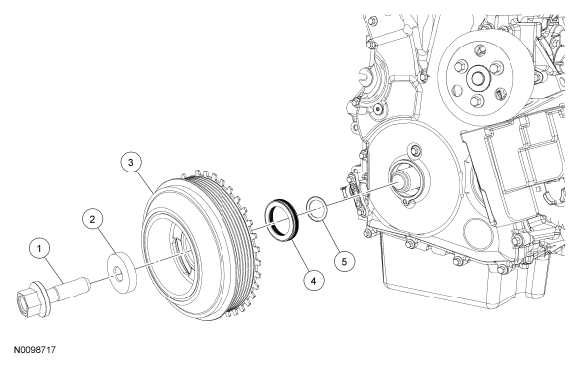

Crankshaft Pulley and Crankshaft Front Oil Seal
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION TABLE
| Item |
Part Number |
Description |
| 1 |
6K340 |
Crankshaft pulley bolt |
| 2 |
- |
Crankshaft pulley washer (part of 6K340) |
| 3 |
6316 |
Crankshaft pulley |
| 4 |
6700 |
Crankshaft front seal |
| 5 |
6378 |
Diamond washer |
