Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS TABLE
| Support Bar, Engine 303-F072 |

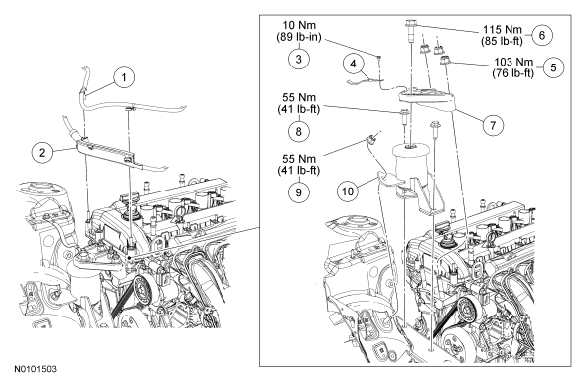

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Block heater wiring retainer (if equipped) (2 required) |
| 2 | - | High voltage wiring harness retainer (part of 14300) |
| 3 | - | Ground strap bolt |
| 4 | - | Ground strap |
| 5 | N807144 | Engine mount bracket nut (3 required) |
| 6 | W710824 | Engine mount bracket bolt |
| 7 | 6A094 | Engine mount bracket |
| 8 | W500233 | Engine mount bolt (2 required) |
| 9 | - | Engine mount nut |
| 10 | 6068 | Engine mount |
