Cylinder Head: Material
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent | WSS-M2C930-A |
| Multi-Purpose Grease XG-4 and/or XL-5 | ESB-M1C93-B |

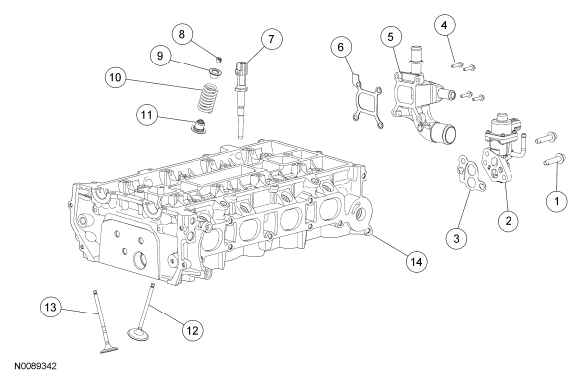

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W500225 | EGR valve bolt (2 required) |
| 2 | 9D475 | EGR valve |
| 3 | 9D476 | EGR valve gasket |
| 4 | W500015 | Coolant outlet bolt (4 required) |
| 5 | 8K556 | Coolant outlet |
| 6 | 8255 | Coolant outlet gasket |
| 7 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 8 | 6518 | Valve collet (16 required) |
| 9 | 6514 | Valve spring retainer (16 required) |
| 10 | 6513 | Valve spring (16 required) |
| 11 | 6A517 | Valve seal (16 required) |
| 12 | 6505 | Intake valve (8 required) |
| 13 | 6507 | Exhaust valve (8 required) |
| 14 | 6049 | Cylinder head |
