Valve Cover - RH (View 1 of 3)

WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

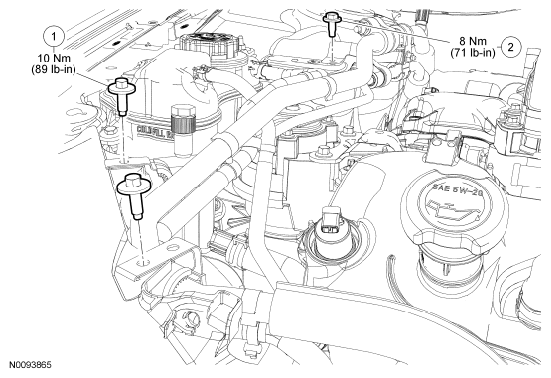

Fig 1: Valve Cover Replacement Components With Torque Specifications RH (1 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	W503924	A/C tube retaining clamp bolt (2 required)
2	W505422	A/C tube retaining clamp bolt
