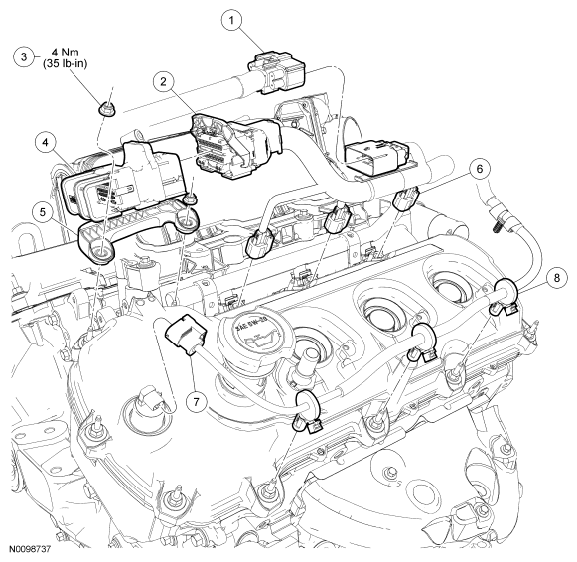

Valve Cover - LH (View 1 of 2)
WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Early build shown in illustration, late build similar.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Engine control wiring harness electrical connector (part of 12C508) |
| 2 | 14A464 | Engine control wiring harness electrical connector (part of 12C508) |
| 3 | W520100 | Wiring harness retaining bracket nut (2 required) |
| 4 | 14A464 | Engine control wiring harness electrical connector (part of 12C508) |
| 5 | - | Wiring harness retaining bracket (part of 12C508) |
| 6 | 14A464 | LH fuel injector electrical connector (3 required) (part of 12C508) |
| 7 | 14A464 | LH Variable Camshaft Timing (VCT) electrical connector (part of 12C508) |
| 8 | W700497 | Engine control wiring harness retainer (part of 12C508) |
