Exhaust Manifold - LH: Material

WARNING: This page is about a different car, the 2010 Lincoln MKZ and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

ITEM SPECIFICATION TABLE

Item	Specification
Motorcraft® Metal Surface Prep ZC-31-A	-

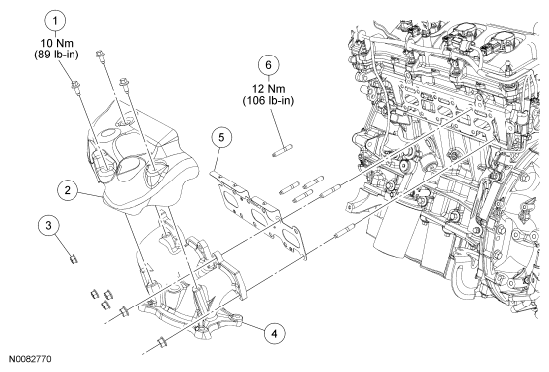

Fig 1: Exhaust Manifold Replacement Components LH With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	W713299	LH exhaust manifold heat shield bolt (3 required)
2	9Y427	LH exhaust manifold heat shield
3	W701706	LH exhaust manifold nut (6 required)
4	9431	LH exhaust manifold
5	9448	LH exhaust manifold gasket
6	W701732	LH exhaust manifold stud (6 required)
