Coolant Pump Belt and Pulley
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

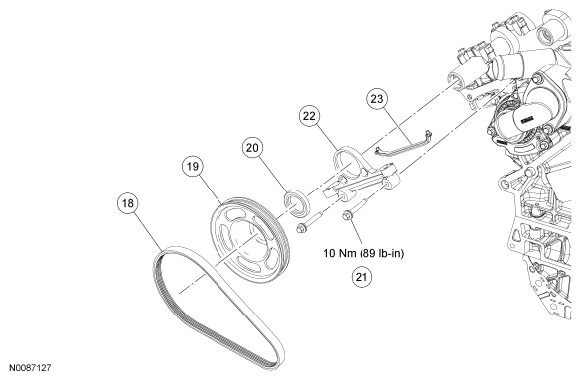

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 18 | 8K543 | Coolant pump drive belt |
| 19 | 6A359 | Coolant pump drive pulley |
| 20 | - | Camshaft oil seal |
| 21 | W701242 | Camshaft oil seal retainer bolt (2 required) |
| 22 | 6B293 | Camshaft oil seal retainer |
| 23 | 6B295 | Camshaft oil seal retainer gasket |
