Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS TABLE
| Support Bar, Engine 303-F072 | |
| Universal Adapter Brackets 014-0001 or equivalent |

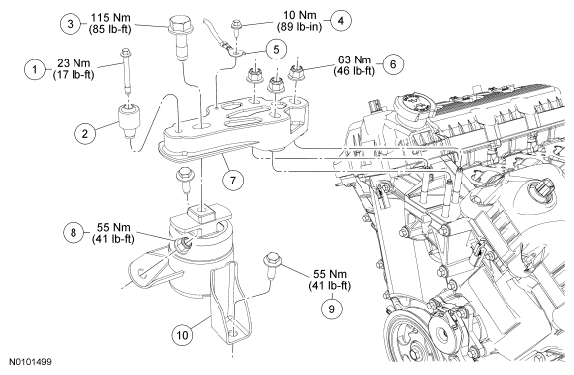

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W711879 | Damper bolt |
| 2 | 7458 | Damper |
| 3 | W711684 | Engine mount bracket bolt |
| 4 | W705936 | Ground wire bolt |
| 5 | 19A095 | Ground wire |
| 6 | W712334 | Engine support insulator bracket nut (3 required) |
| 7 | 6A094 | Engine mount bracket |
| 8 | W711578 | Engine mount nut |
| 9 | W706496 | Engine mount bolt (2 required) |
| 10 | 6F012 | Engine mount |
