Cylinder Head: Disassembly

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components removed for locations. If not reassembled in their original positions, severe engine damage may occur.
  1. Using the Valve Spring Compressors, remove the keys, retainer and spring.

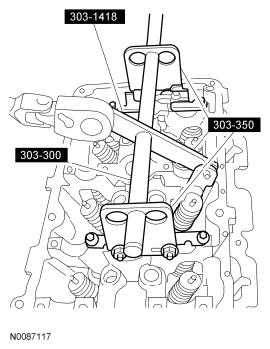

    Fig 1: Removing Keys, Retainer & Spring
    G06263653Courtesy of FORD MOTOR CO.
  2. Remove the valve from the cylinder head.
  3. Remove the valve stem seal.
