Brake Vacuum Pump
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

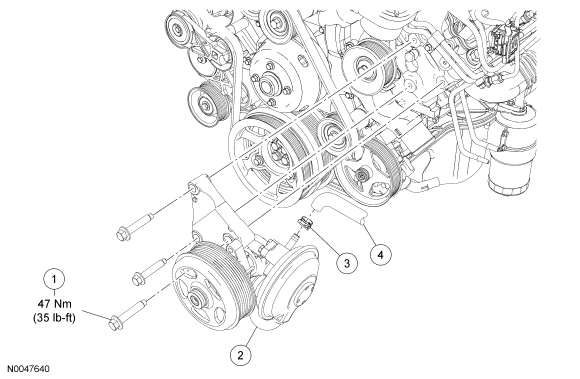

| Item | Part Number | Description |
|---|---|---|
| 1 | W500321 | Vacuum pump bolt (3 required) |
| 2 | 2A451 | Vacuum pump assembly |
| 3 | 382984 | Clamp |
| 4 | 9C482 | Vacuum hose |
- Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE article.
- Release the clamp and disconnect the vacuum hose.
- Remove the 3 bolts and the vacuum pump.
- To install, tighten to 47 Nm (35 lb-ft).
- To install, reverse the removal procedure.
NOTE:
The bolt behind the pulley is accessed through the pulley with an extension and a short socket.
