Brake Booster - Vacuum: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

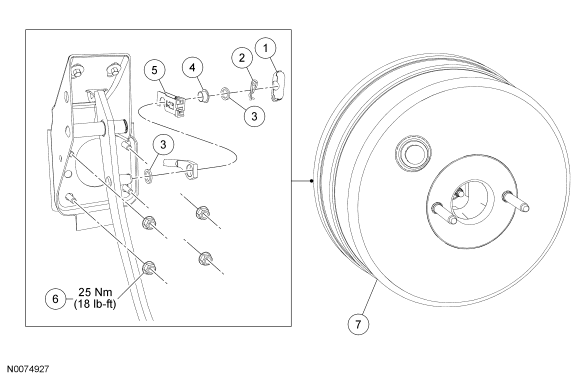

| Item |
Part Number |
Description |
| 1 |
2475 |
Brake booster push rod cotter pin cover |
| 2 |
380699 |
Brake booster push rod cotter pin |
| 3 |
2B129 |
Spacers (2 required) |
| 4 |
2474 |
Bushing |
| 5 |
13480 |
Stoplamp switch |
| 6 |
5867823 |
Brake booster nut (4 required) |
| 7 |
2005 |
Brake booster |
