Brake Master Cylinder: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

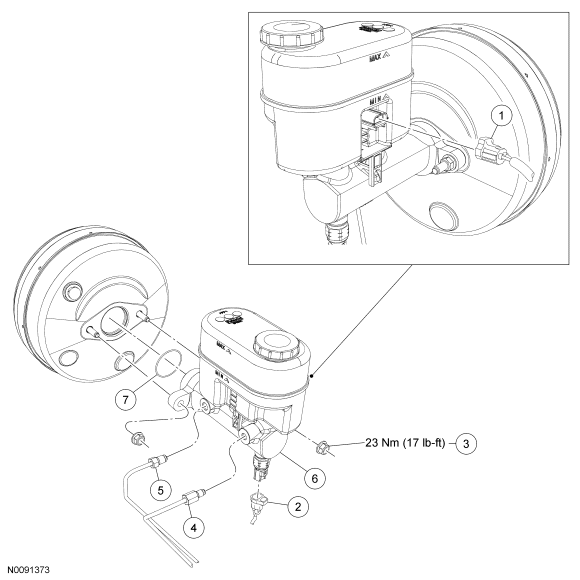

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake fluid level switch electrical connector (part of 12A581) |
| 2 | - | Speed control deactivator switch electrical connector (part of 12A581) |
| 3 | W520113 | Brake master cylinder nut (2 required) |
| 4 | - | Primary master cylinder tube fitting (part of 2234) |
| 5 | - | Secondary master cylinder tube fitting (part of 2234) |
| 6 | 2140 | Brake master cylinder |
| 7 | 2152 | Brake master cylinder-to-booster seal |
