Rear Wheel Bearing and Axle Shaft Seal - Semi-Floating Axle: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 303-224 (Handle) | 205-153 (T80T-4000-W) | |
| Installer, Rear Axle Bearing | 205-154 (T80T-4000-X) | |
| Installer, Rear Axle Oil Seal | 205-381 (T97T-1177-A) | |
| Remover, Axle Bearing | 205-224 (T85T-1225-AH) | |
| Slide Hammer | 100-001 (T50T-100-A) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

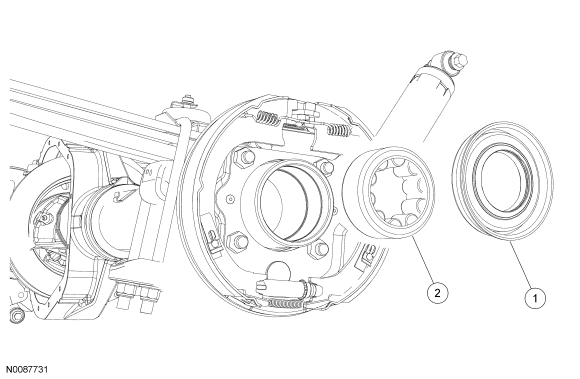

| Item | Part Number | Description |
|---|---|---|
| 1 | 1177 | Axle shaft oil seal |
| 2 | 1225 | Axle shaft bearing |
