Differential Housing Cover: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Additive Friction Modifier XL-3 (US); CXL-3 (Canada) |
EST-M2C118-A |
| Motorcraft SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |
| Ultra Silicone Sealant TA-29 |
- |

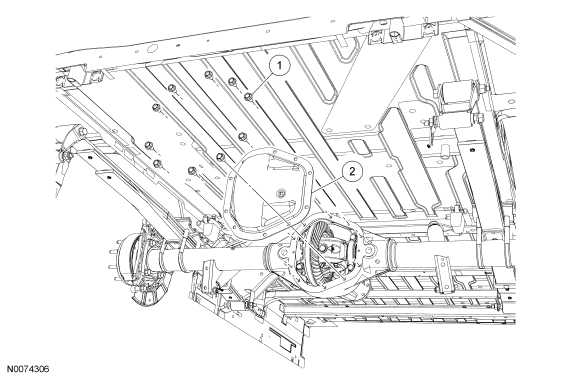

| Item | Part Number | Description |
|---|---|---|
| 1 | 4346 | Differential housing cover bolt (10 required) |
| 2 | 4033 | Differential housing cover |
