Differential Case and Ring Gear - Model 60, Limited Slip: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Limited Slip Preload Tool | 205-D060 (D83T-4205-C1) or equivalent (Part of Limited Slip Rotating Tool 205-DS059 [D83T-4205-C]) | |
| Rotating Handle | 205-D062 (D83T-4205-C3) or equivalent (Part of Limited Slip Rotating Tool 205-DS059 [D83T-4205-C]) | |
| Step Plate | 205-D061 (D83T-4205-C2) or equivalent (Part of Limited Slip Rotating Tool 205-DS059 [D83T-4205-C]) |
Material
| Item | Specification |
|---|---|
| Additive Friction Modifier XL-3 (US); CXL-3 (Canada) |
EST-M2C118-A |
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

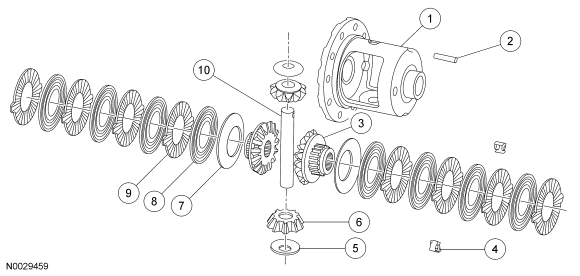

Fig 1: Exploded View Of Two-Pinion Limited-Slip Differential - Model 60-1U Trac-Lok(R) (Full-Floating Axle)
| Item | Part Number | Description |
|---|---|---|
| 1 | 4204 | Differential case |
| 2 | 4241 | Differential pinion shaft lock pin |
| 3 | 4236 | Differential side gear |
| 4 | - | Retainer clip (part of 4880) |
| 5 | 4230 | Differential pinion thrust washer |
| 6 | 4215 | Differential pinion gear |
| 7 | - | Plate preload spacer (part of 4880) |
| 8 | - | Clutch disc (part of 4880) |
| 9 | - | Clutch plate (part of 4880) |
| 10 | 4211 | Differential pinion shaft |
