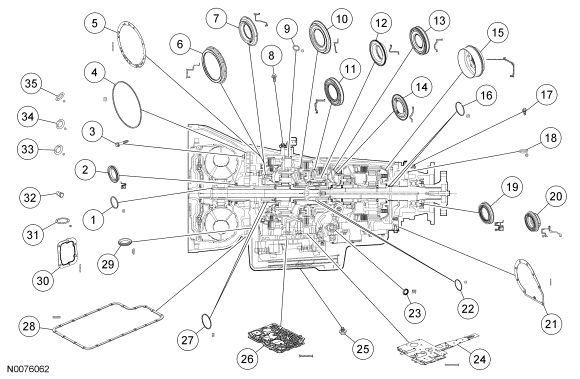

Seals, Rings and Gasket Locator
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7L323 | Stator support seal |
| 2 | 7A248 | Front pump support seal assembly |
| 3 | 7N134 | Pump-to-case bolts |
| 4 | 7A248 | Front pump seal-to-case |
| 5 | 7A136 | Front pump-to-case gasket |
| 6 | 7A262 | Overdrive clutch piston |
| 7 | 7A262 | Coast clutch piston |
| 8 | N805503-S100 | Sensor-to-case retaining bolt |
| 9 | 7Z101 | Turbine shaft speed (TSS) and intermediate shaft speed sensor O-ring |
| 10 | 7E005 | Intermediate clutch piston |
| 11 | 7A262 | Direct clutch piston |
| 12 | 7H359 | Direct clutch balance piston |
| 13 | 7A262 | Forward clutch piston |
| 14 | 7H360 | Forward clutch balance piston |
| 15 | 7D402 | Reverse clutch piston |
| 16 | 7D019 | Case seal pack Teflon® seals |
| 17 | N805503-S100 | Sensor-to-case retaining bolt |
| 18 | 7Z101 | Output shaft speed (OSS) sensor O-ring |
| 19 | 7052 | Fixed yoke extension housing seal |
| 20 | 7052 | Slip yoke extension housing seal |
| 21 | 7086 | Extension housing-to-case gasket |
| 22 | 7D019 | Forward clutch piston Teflon® seals |
| 23 | 7B498 | Manual lever-to-case |
| 24 | 7C155 | Solenoid body to case gasket |
| 25 | 6730 | Transmission fluid pan drain plug |
| 26 | 7H200 | Manifold-to-ditch plate filter and gasket |
| 27 | 7G402 | Coast clutch Teflon® seals |
| 28 | 7A191 | Transmission fluid pan-to-case gasket |
| 29 | 7Z302 | Transmission fluid filter-to-case seal |
| 30 | 7223 | Power take off (PTO) cover gasket |
| 31 | 7Z276 | Solenoid body bulkhead electrical connector |
| 32 | 390685-S | Line pressure pipe plug |
| 33 | 7J227 | Transmission fluid cooler tube connector-to-case O-ring |
| 34 | W708418-S300 | Transmission fluid cooler tube connector O-ring |
| 35 | 391308-S | Transmission fluid fill tube-to-stub seal |
