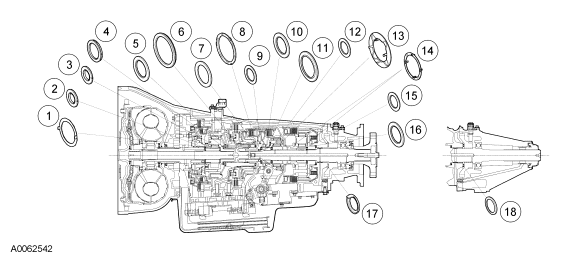

Bushings, Bearing and Thrust Washer Locator
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D014 | Front pump support washer No. 1T |
| 2 | 7C096 | Sun gear thrust bearing and race assembly No. 2B and 3B |
| 3 | 7E486 | Part of the overdrive carrier (7E031) |
| 4 | 7F240 | Direct clutch bearing and race assembly No. 4B |
| 5 | 7G178 | Sun gear thrust bearing and race assembly No. 5B |
| 6 | 7L326 | Center support thrust washer |
| 7 | 7F374 | Intermediate clutch thrust bearing No. 8B |
| 8 | 7C096 | Intermediate brake thrust washer |
| 9 | 7D234 | Sun gear thrust bearing and race assembly No. 10B, 12B, 15B |
| 10 | 7D090 | Forward clutch hub thrust washer No. 9T |
| 11 | 7H334 | Forward carrier bearing and race assembly No. 11B |
| 12 | 7D234 | Sun gear thrust bearing and race assembly No. 10B, 12B, 15B |
| 13 | 7L339 | Forward carrier lube dam |
| 14 | 7A166 | Planetary carrier thrust washer |
| 15 | 7D234 | Sun gear thrust bearing and race assembly No. 10B, 12B, 15B |
| 16 | 7G178 | Bearing and race assembly No. 16B |
| 17 | 7B368 | Park gear thrust washer (fixed yoke) |
| 18 | 7B368 | Park gear thrust bearing (slip yoke) |
