Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vacuum line connector from the hublock vacuum reservoir.

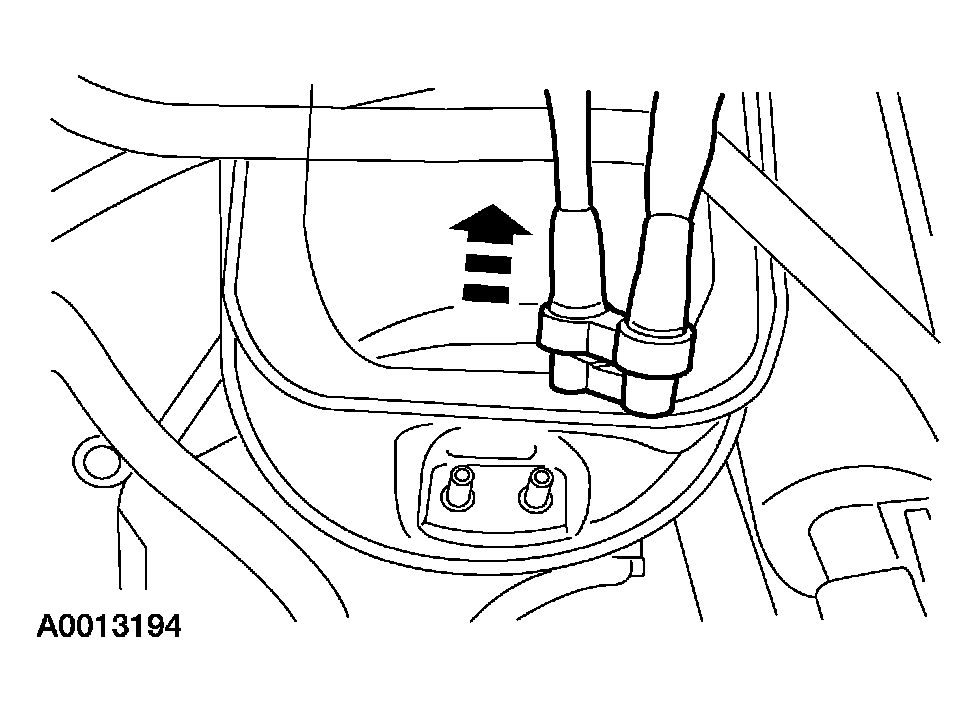

    Fig 1: Disconnecting Vacuum Line Connector From Hublock Vacuum Reservoir
    G03909623Courtesy of FORD MOTOR CO.
  2. Working through the RH front wheel opening, remove the retaining nuts.
    Fig 2: Removing Retaining Nuts
    G03909624Courtesy of FORD MOTOR CO.
  3. Remove the hublock vacuum reservoir.
  4. To install, reverse the removal procedure.
