Extension Housing Gasket: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

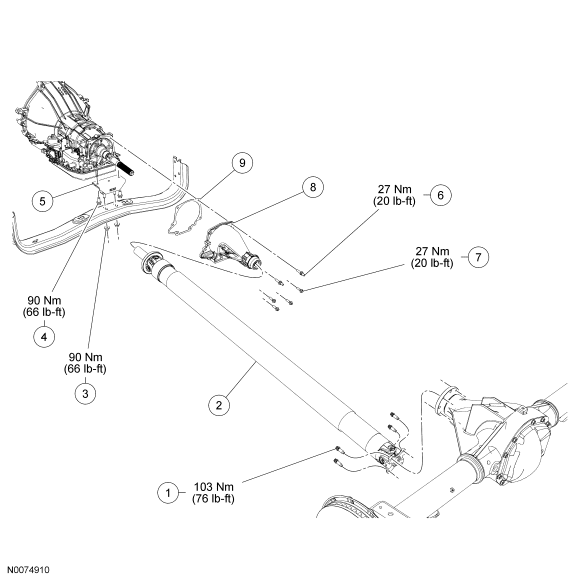

| Item | Part Number | Description |
|---|---|---|
| 1 | N811880-S | Driveshaft flange bolt (4 required) |
| 2 | 4602 | Driveshaft |
| 3 | N807479 | Transmission insulator and retainer nut (2 required) |
| 4 | 390066-S | Transmission insulator and retainer bolt (2 required) |
| 5 | 6D091 | Transmission insulator and retainer |
| 6 | N803521-S | Extension housing stud bolt (2 required) |
| 7 | N803747-S | Extension housing bolt (4 required) |
| 8 | 7A041 | Extension housing |
| 9 | 7086 | Extension housing gasket |
