Throttle Body - Spacer, 5.4L: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

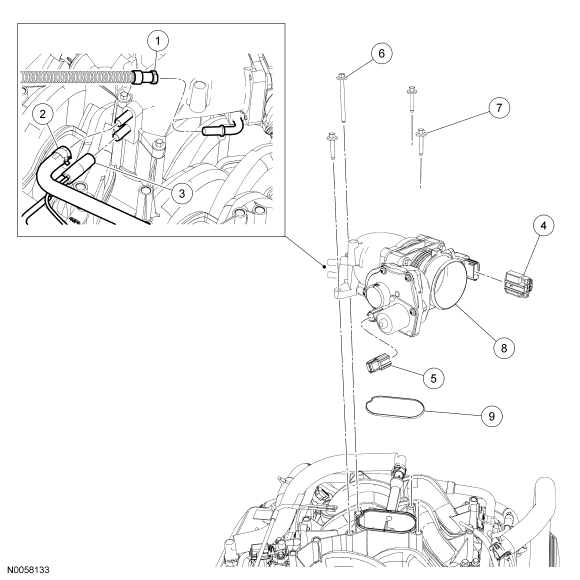

| Item | Part Number | Description |
|---|---|---|
| 1 | 9E681 | Evaporative emissions (EVAP) hose |
| 2 | 4C482 | Intake manifold vacuum hose |
| 3 | 9E499 | Vacuum connector |
| 4 | - | Throttle position (TP) sensor electrical connector (part of 12B637) |
| 5 | - | Electronic throttle control electrical connector (part of 12B637) |
| 6 | N808598 | Throttle body (TB) spacer bolt |
| 7 | N808429 | TB spacer bolt (3 required) |
| 8 | 9P697 | TB and TB spacer assembly |
| 9 | 9L437 | TB spacer gasket |
