Removal And Installation
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

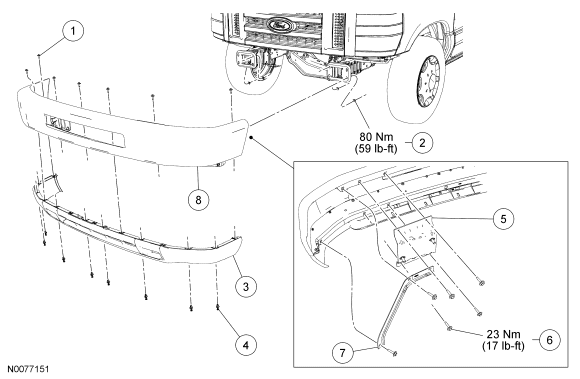

| Item | Part Number | Description |
|---|---|---|
| 1 | W503924-S | Front bumper-to-valence panel screw (7 required) |
| 2 | 011901-A | Front bumper nut (4 required) |
| 3 | 17626-A | Valence panel |
| 4 | 17C786-A | Valence panel push pin (8 required) |
| 5 | 17B884-A | Front bumper mounting plate |
| 6 | W505435-S | Front bumper mounting plate bolt (8 required) |
| 7 | 17981-A | Front bumper reinforcement bracket (2 required) |
| 8 | 17C965-C | Front bumper |
- Remove the valence panel in the following sequence.
- Remove the A/C condenser air deflector.
- Remove the 7 front bumper-to-valence panel screws.
- Remove the 8 push pin retainers.
- Remove the wiring harness retainer for the block heater cord.
- Remove the front bumper in the following sequence.
- Remove the 4 nuts.
- Remove the 4 bolts and remove the bumper.
- To install, tighten to 80 Nm (59 lb-ft).
- To install, reverse the removal procedure.
NOTE:
An assistant is required to remove the front bumper.
