Instrument Cluster (IC): Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

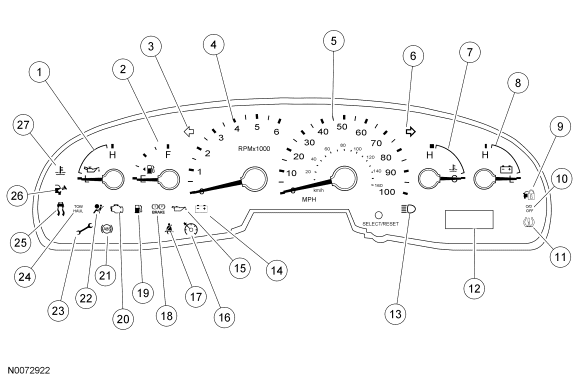

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Oil pressure gauge |
| 2 | - | Fuel gauge |
| 3 | - | LH turn indicator |
| 4 | - | Tachometer |
| 5 | - | Speedometer |
| 6 | - | RH turn indicator |
| 7 | - | Temperature gauge |
| 8 | - | Voltage gauge |
| 9 | - | Anti-theft indicator |
| 10 | - | O/D off indicator |
| 11 | - | Tire pressure monitoring system (TPMS) warning indicator |
| 12 | - | Integrated display |
| 13 | - | High beam indicator |
| 14 | - | Charging system warning indicator |
| 15 | - | Low oil pressure warning indicator |
| 16 | - | Speed control indicator |
| 17 | - | Safety belt warning indicator |
| 18 | - | Brake warning indicator |
| 19 | - | Low fuel warning indicator |
| 20 | - | Malfunction indicator lamp (MIL) |
| 21 | - | ABS warning indicator |
| 22 | - | Air bag warning indicator |
| 23 | - | Powertrain malfunction (wrench) indicator |
| 24 | - | Tow haul indicator |
| 25 | - | Traction control/stability assist indicator |
| 26 | - | Check fuel cap indicator |
| 27 | - | Engine coolant over temperature warning indicator |
