Rear Door Window Glass - SuperCab: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and position the latch aside.
    Fig 1: Removing Screws
    G03925733Courtesy of FORD MOTOR CO.
  2. Remove the rear door window trim panel.

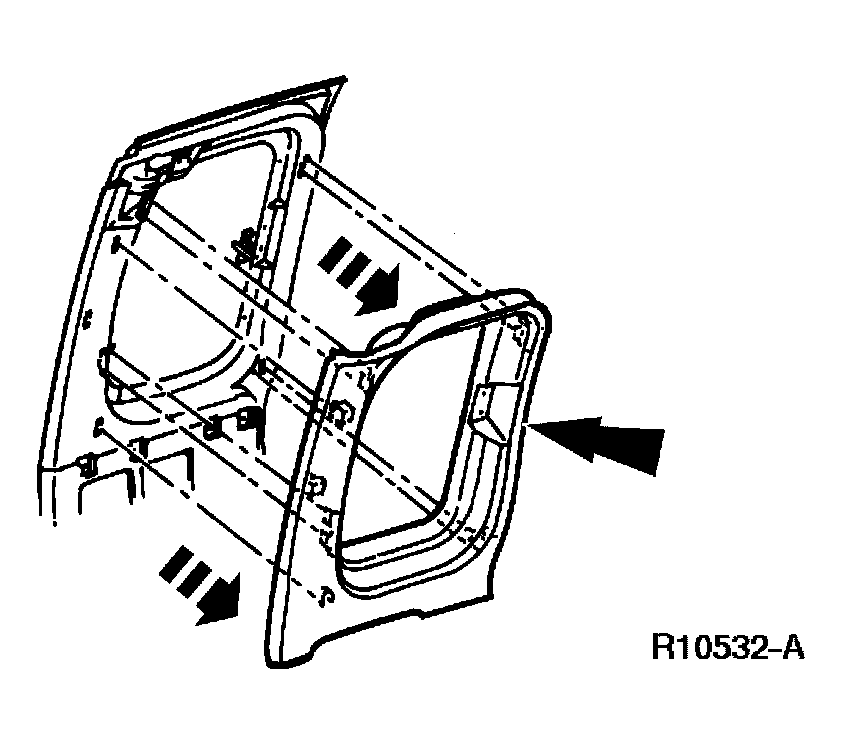

    Fig 2: Removing Rear Door Window Trim Panel
    G03925734Courtesy of FORD MOTOR CO.
  3. Remove the rear door window glass (29726).
    1. Remove the nuts and clips.
    2. Remove the rear door window glass and frame.

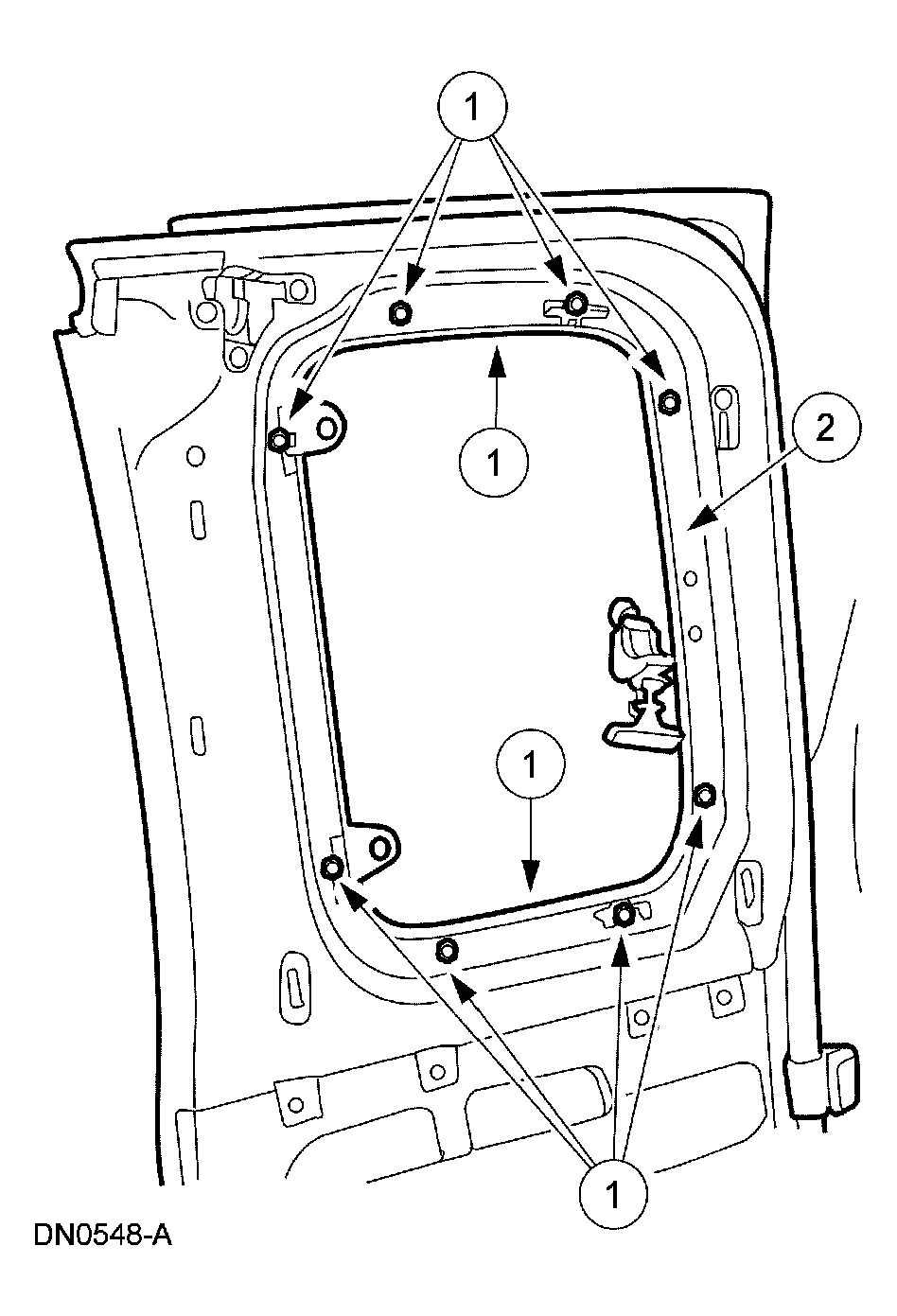

      Fig 3: Removing Rear Door Window Glass And Frame
      G03925735Courtesy of FORD MOTOR CO.
  4. Remove excess foam butyl from the window frame and window opening.
