Pinpoint Test E: The LR Or RR Power Window Is Inoperative

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Test Step

  1. E1 CHECK THE VOLTAGE TO THE LR OR RR WINDOW CONTROL SWITCH
    • Disconnect: Inoperative Rear Window Control Switch C701/C801.
    • Key in ON position.
    • NOTE: Set the window lock switch to the UNLOCK position. Measure the voltage between inoperative rear window connector pin 4, circuit 193 (YE/LG) harness side and ground.
      Fig 1: Checking Voltage To LR Or RR Window Control Switch
      G03911562Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Result / Action to Take

    • Yes  : GO to E2.
    • No  : REPAIR the circuit. TEST the system for normal operation.
  2. E2 CHECK THE GROUNDS TO THE INOPERATIVE REAR WINDOW CONTROL SWITCH
    • Key in OFF position.
    • For LR window, measure the resistance between LR window control switch C701 pin 6, circuit 316 (YE/LB) harness side and ground; and between LR window control switch C701 pin 1, circuit 317 (GY/OG) harness side and ground.
      Fig 2: Measuring Resistance Between Connector And Ground
      G03911571Courtesy of FORD MOTOR CO.
    • For RR window, measure the resistance between RR window control switch C801 pin 6, circuit 320 (RD/BK) harness side and ground; and between LR window control switch C801 pin 1, circuit 319 (YE/BK) harness side and ground.
      Fig 3: Measuring Resistance Between Connector And Ground
      G03911571Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : GO to E3.
    • No  : REPAIR the circuit(s). TEST the system for normal operation.
  3. E3 CHECK THE CIRCUITS TO THE INOPERATIVE REAR WINDOW CONTROL SWITCH FOR AN OPEN
    • Key in OFF position.
    • Disconnect: LF Window Control Switch C504b.
    • Measure the resistance between LF window control switch C504b pin 5, circuit 316 (YE/BK) and LR window control switch C701 pin 6, circuit 316 (YE/BK) harness side; or between LF window control switch C504b pin 3, circuit 320 (RD/BK) and RR window control switch C801 pin 6, circuit 320 (RD/BK) harness side.
      Fig 4: Measuring Resistance Between LF Window Control Switch C504b Pin 5, Circuit 316 And LR Window Control Switch C701 Pin 6, Circuit 316
      G03911573Courtesy of FORD MOTOR CO.
    • Measure the resistance between LF window control switch C504b pin 6, circuit 317 (GY/OG) and LR window control switch C701 pin 1, circuit 317 (GY/OG) harness side; or between LF window control switch C504b pin 2, circuit 319 (YE/BK) and RR window control switch C801 pin 1, circuit 319 (YE/BK) harness side.
      Fig 5: Measuring Resistance Between LF Window Control Switch C504b Pin 6, Circuit 317 And LR Window Control Switch C701 Pin 1, Circuit 317
      G03911574Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : GO to E4.
    • No  : REPAIR the circuit(s). TEST the system for normal operation.
  4. E4 CHECK THE INOPERATIVE WINDOW CONTROL SWITCH
    • Key in ON position.
    • Connect a jumper wire between pin 1, circuit 319 (YE/BK) for RR window control switch, or circuit 317 (GY/OG) for LR window control switch and pin 5, circuit 881 (BN) for RR window control switch, or circuit 884 (YE/BK) for LR window control switch connector. Connect a second jumper wire between pin 3, circuit 193 (YE/LG) and pin 2, circuit 882 (BN/YE) for the RR window control switch, or circuit 885 (YE/LB) for the LR window control switch connector. The window should operate in the downward direction.
      Fig 6: Connecting Jumper Wire Between Pin 1, Circuit 319 Or Circuit 317 And Pin 5, Circuit 881 Or Circuit 884
      G03911566Courtesy of FORD MOTOR CO.
    • Connect a jumper wire between pin 6, circuit 320 (RD/BK) for RR window control switch, or circuit 316 (YE/LB) for LR window control switch and pin 2, circuit 882 (BN/YE) for RR window control switch, or circuit 885 (YE/LB) for LR window control switch connector. Connect a second jumper wire between pin 3, circuit 193 (YE/LG) and pin 5, circuit 881 (BN) for the RR window control switch, or circuit 884 (YE/BK) for the LR window control switch connector. The window should operate in the upward direction.
      Fig 7: Connecting Jumper Wire Between Pin 6, Circuit 320 Or Circuit 316 And Pin 2, Circuit 882 Or Circuit 885
      G03911576Courtesy of FORD MOTOR CO.
    • Does the window operate correctly?
    • Yes  : If the rear window did not operate with the rear window controls, INSTALL a new rear window control switch. If the rear window did operate with the rear window controls but not with the LH front window controls, INSTALL a new LH front window control switch. REFER to SWITCH  in this article. TEST the system for normal operation.
    • No  : GO to E5.
  5. E5 CHECK POWER WINDOW MOTOR CIRCUITS
    • Key in OFF position.
    • Disconnect: Inoperative Power Window Motor C703/C803.
    • Measure the resistance between inoperative window control switch C701 pin 5, circuit 884 (YE/BK) harness side and between LR power window motor C703 pin 1, circuit 884 (YE/BK) harness side; or C801 pin 5, circuit 881 (BN) harness side and between RR power window motor C803 pin 1, circuit 881 (BN) harness side.

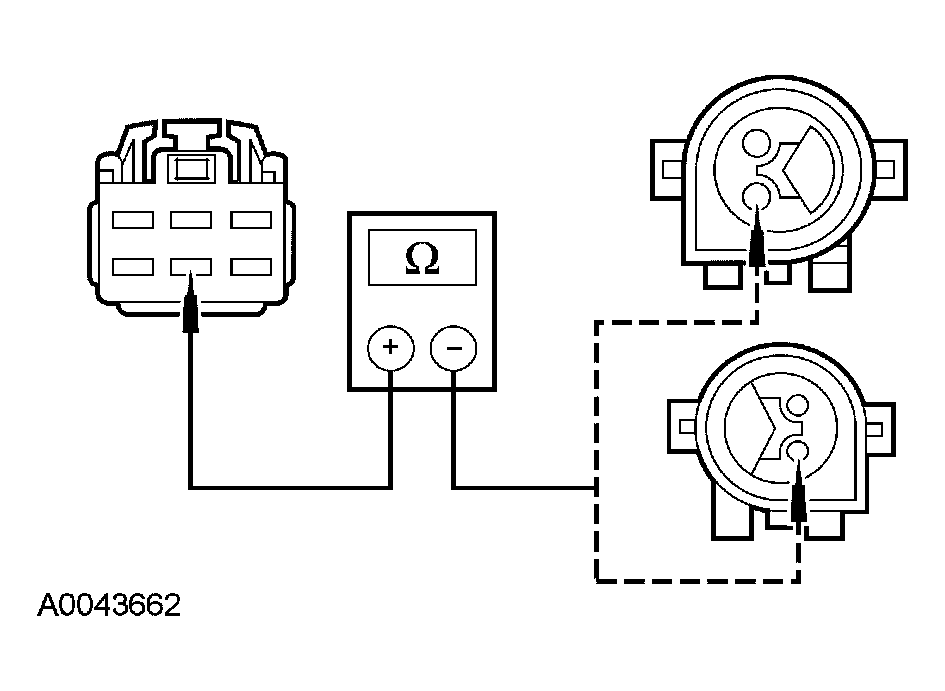

      Fig 8: Measuring Resistance Between Inoperative Window Control Switch C701 Pin 5, Circuit 884 And Between LR Power Window Motor C703 Pin 1, Circuit 884
      G03925720Courtesy of FORD MOTOR CO.
    • Measure the resistance between inoperative window control switch C701 pin 2, circuit 885 (YE/LB) harness side and between LR power window motor C703 pin 2, circuit 885 (YE/LB) harness side; or C801 pin 2, circuit 882 (BN/YE) harness side and between RR power window motor C803 pin 2, circuit 882 (BN/YE) harness side.
      Fig 9: Measuring Resistance Between Inoperative Window Control Switch, Circuit And Between LR Power Window Motor C703 Pin 2, Circuit 885
      G03911578Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : INSTALL a new RF window motor. REFER to FRONT DOOR WINDOW REGULATOR MOTOR  in this article. TEST the system for normal operation.
    • No  : REPAIR the circuit(s). TEST the system for normal operation.
