Muffler and Tailpipe: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not tighten any fasteners until all components are aligned.

Position the muffler and tailpipe assembly. Connect the rubber isolators.
Loosely install the 2 muffler rear bracket nuts.

NOTE: Using an abrasive pad, clean the exhaust coupling surface area of any surface rust.

Fig 1: Identifying Coupling Installation Dimensions

Courtesy of FORD MOTOR CO.

Place new coupling on the catalytic converter-to-muffler joint or, if equipped, exhaust intermediate-to-muffler joint. Make sure the coupling are installed no more the 4 mm (0.15 in) from the back of the button on the end of the pipe.
Align the exhaust system. For additional information refer to EXHAUST SYSTEM ALIGNMENT .
Tighten the catalytic converter-to-muffler coupling or, if equipped, exhaust intermediate pipe-to-muffler coupling.
- Tighten to 55 Nm (41 lb-ft).
Tighten the 2 rear bracket nuts.
- Tighten to 20 N.m (15 lb.ft).

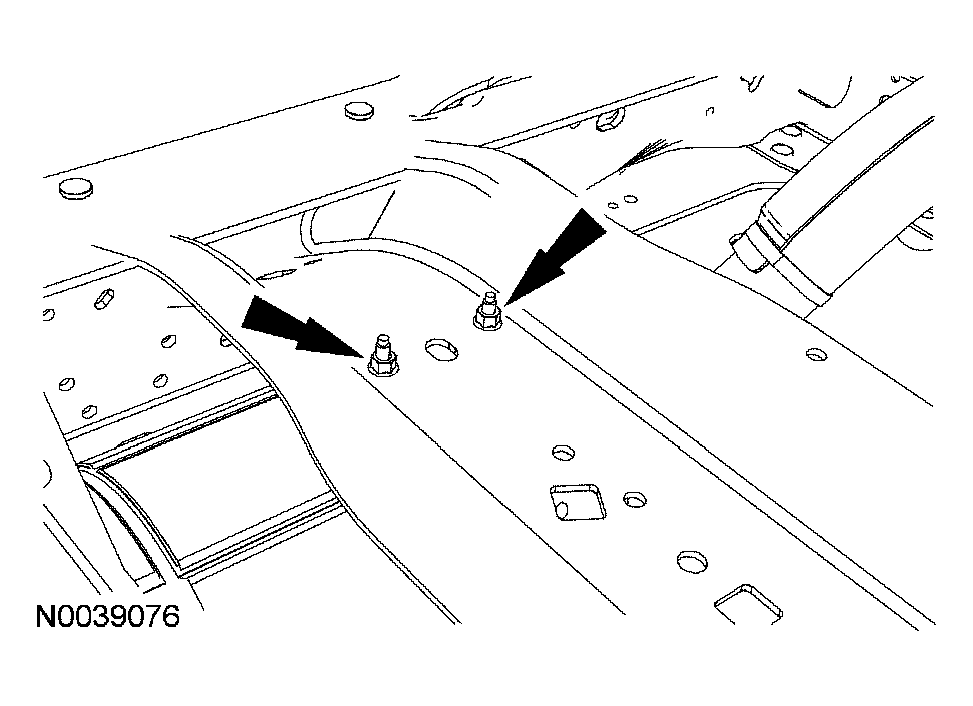

  Fig 2: Tightening Rear Bracket Nuts
