Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If installing a new air conditioning compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system.
  • If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to installing a new air conditioning compressor. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  • If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  • Install a new evaporator core orifice, as directed by the A/C flushing or filtering procedure.
  • Install a new suction accumulator as directed by the A/C flushing or filtering procedure.
NOTE: If installing a new A/C compressor, the A/C clutch disc and hub (19D786), A/C compressor pulley (19D784) and A/C clutch field coil (19D798) must be inspected and transferred from the old unit to the new unit if suitable for reuse.
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. If flushing of the refrigerant system has not been carried out, recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  3. Remove the drive belt from the A/C compressor pulley.

    4. 6.0L diesel vehicles

  4. Remove the cooling fan stator assembly. For additional information, refer to ENGINE COOLING .

    5. All vehicles

  5. Remove the RH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
  6. Loosen the bolt and detach the compressor manifold and tube from the A/C compressor.
    • Discard the O-ring seals.

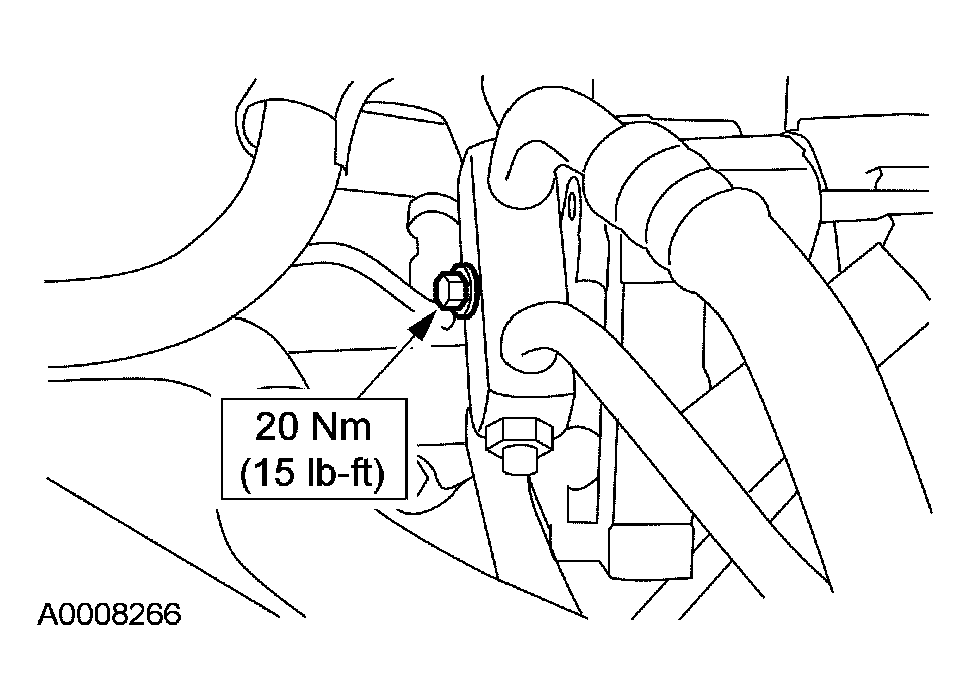

      Fig 1: Loosening Bolt And Detaching Compressor Manifold And Tube From A/C Compressor
      G03910459Courtesy of FORD MOTOR CO.
  7. Disconnect the field coil electrical connector.

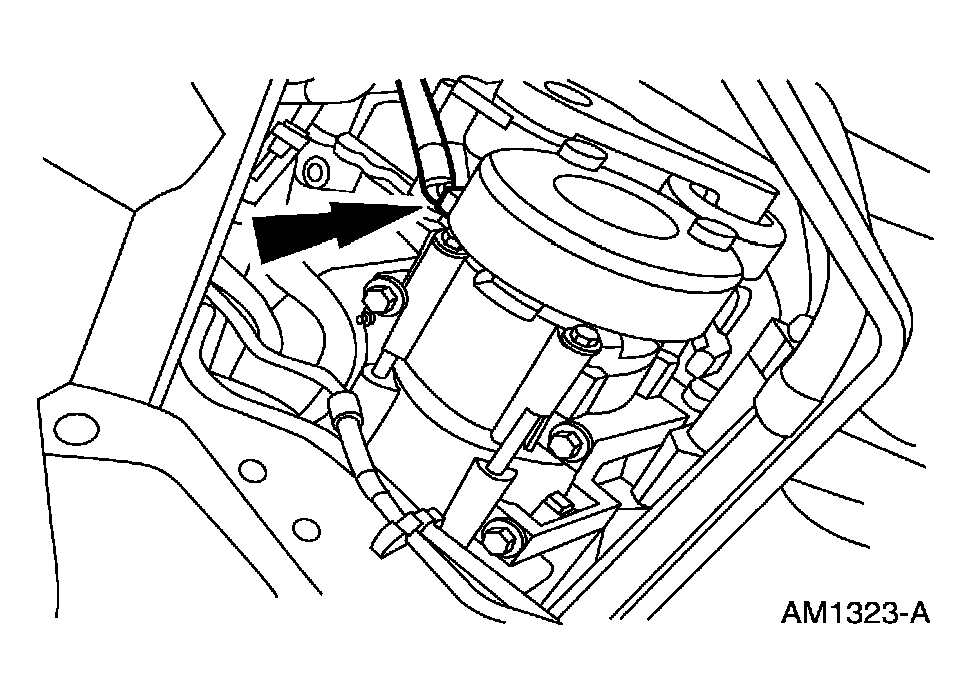

    Fig 2: Disconnecting Field Coil Electrical Connector
    G03908075Courtesy of FORD MOTOR CO.
  8. Remove the nut and the battery cable bracket.
    Fig 3: Removing Nut And Battery Cable Bracket
    G03906869Courtesy of FORD MOTOR CO.
  9. Remove the ground cable and the ground stud.

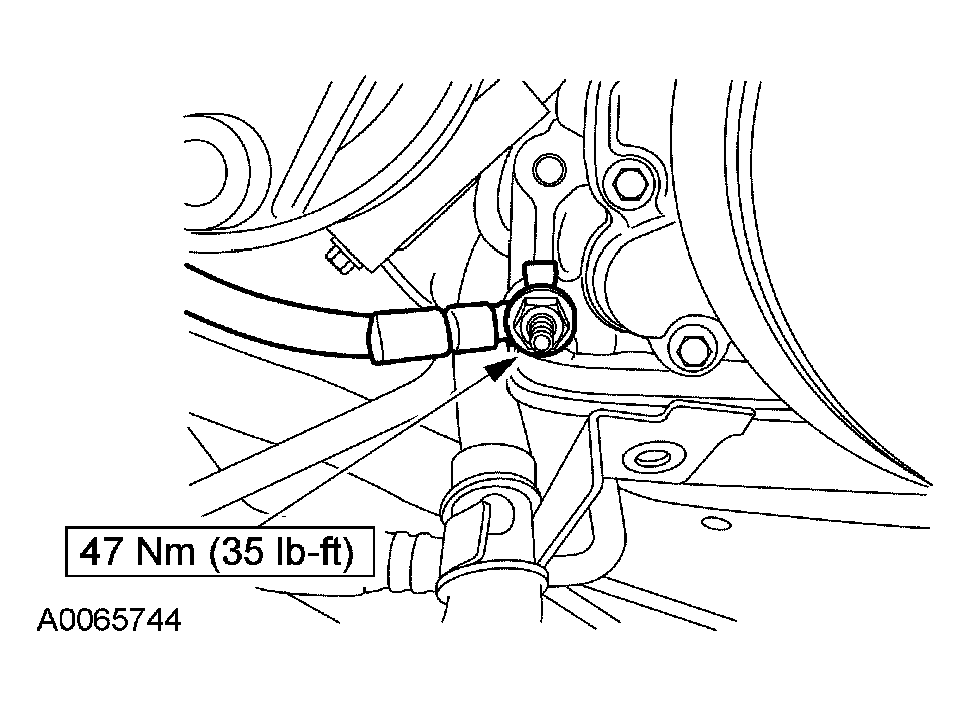

    Fig 4: Removing Ground Cable And Ground Stud
    G03907571Courtesy of FORD MOTOR CO.
    10. NOTE: The lower rear bolt must be removed with the A/C compressor.
    Fig 5: Removing Bolts And A/C Compressor
    G03910463Courtesy of FORD MOTOR CO.
  10. Remove the bolts and the A/C compressor.
  11. To install, reverse the removal procedure.
    • If a new A/C compressor is to be installed, the clutch assembly must be transferred from the old unit to the new unit. For additional information, refer to CLUTCH AND CLUTCH FIELD COIL .
    • Install new O-ring seals.
    • If filtering of the refrigerant system is not to be carried out, lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  12. If filtering of the refrigerant system is not to be carried out, evacuate, leak-test and charge the refrigerant system. For additional information refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
