Manual Transaxle
WARNING: This page is about a different car, the 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
The manual transaxle is a fully synchronized 5-speed transaxle. The forward gears are selected by a synchronizer mechanism. The 3rd gear, 4th gear and 5th speed cluster gear are mounted on the input shaft. First gear and 2nd gear are mounted on the mainshaft. The helical-cut forward gears are in constant mesh with the corresponding gears on the opposing shaft. The manual transaxle features a synchronized reverse gear. The reverse gears have helical-cut teeth and are engaged through a synchronizer.

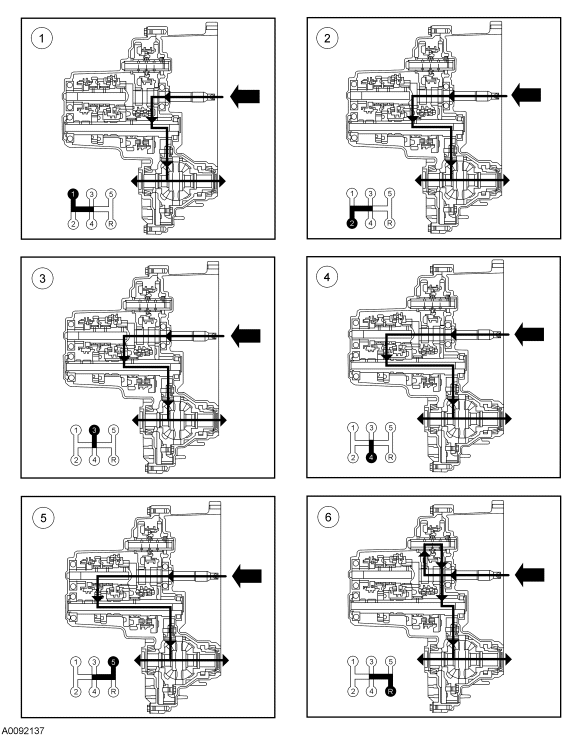

| Item | Part Number | Description |
|---|---|---|
| 1 | - | 1st gear |
| 2 | - | 2nd gear |
| 3 | - | 3rd gear |
| 4 | - | 4th gear |
| 5 | - | 5th gear |
| 6 | - | Reverse gear |
