Driveshaft - Front, Visteon: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
Index-mark the front driveshaft to the front axle flange and at the transfer case flange.

Fig 1: Index-Marking On Front Driveshaft To Front Axle Flange
Courtesy of FORD MOTOR CO.

Fig 2: Index-Marking On Front Driveshaft To Transfer Case Flange
Courtesy of FORD MOTOR CO.
Remove and discard the fasteners.
1. Remove and discard the bolts.
2. Remove and discard the U-joint retainers.

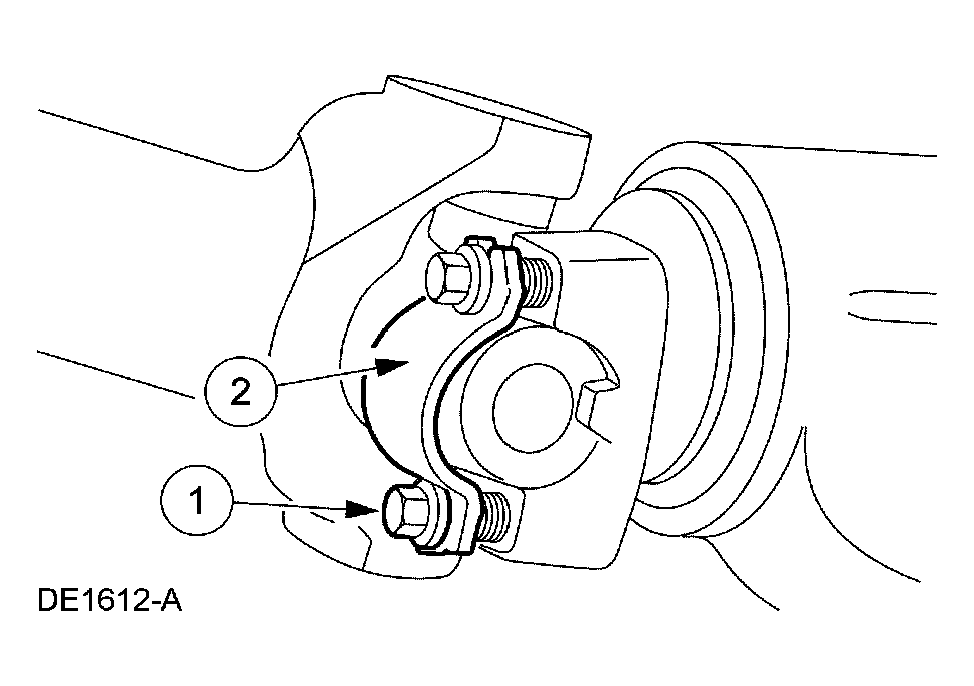

  Fig 3: Removing U-Joint Retainers Bolts
  Courtesy of FORD MOTOR CO.
Remove and discard the four bolts.

Fig 4: Locating Rear Driveshaft Bolts And Alignment Marks
Courtesy of FORD MOTOR CO.

NOTE: Wrap electrical tape around the bearing cups to prevent them from falling off the U-joint spider.

Remove the front driveshaft.
- Compress and separate the front driveshaft from the front axle, then separate the driveshaft from the transfer case.

  Fig 5: Removing Front Driveshaft
  Courtesy of FORD MOTOR CO.
