Universal Joints

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

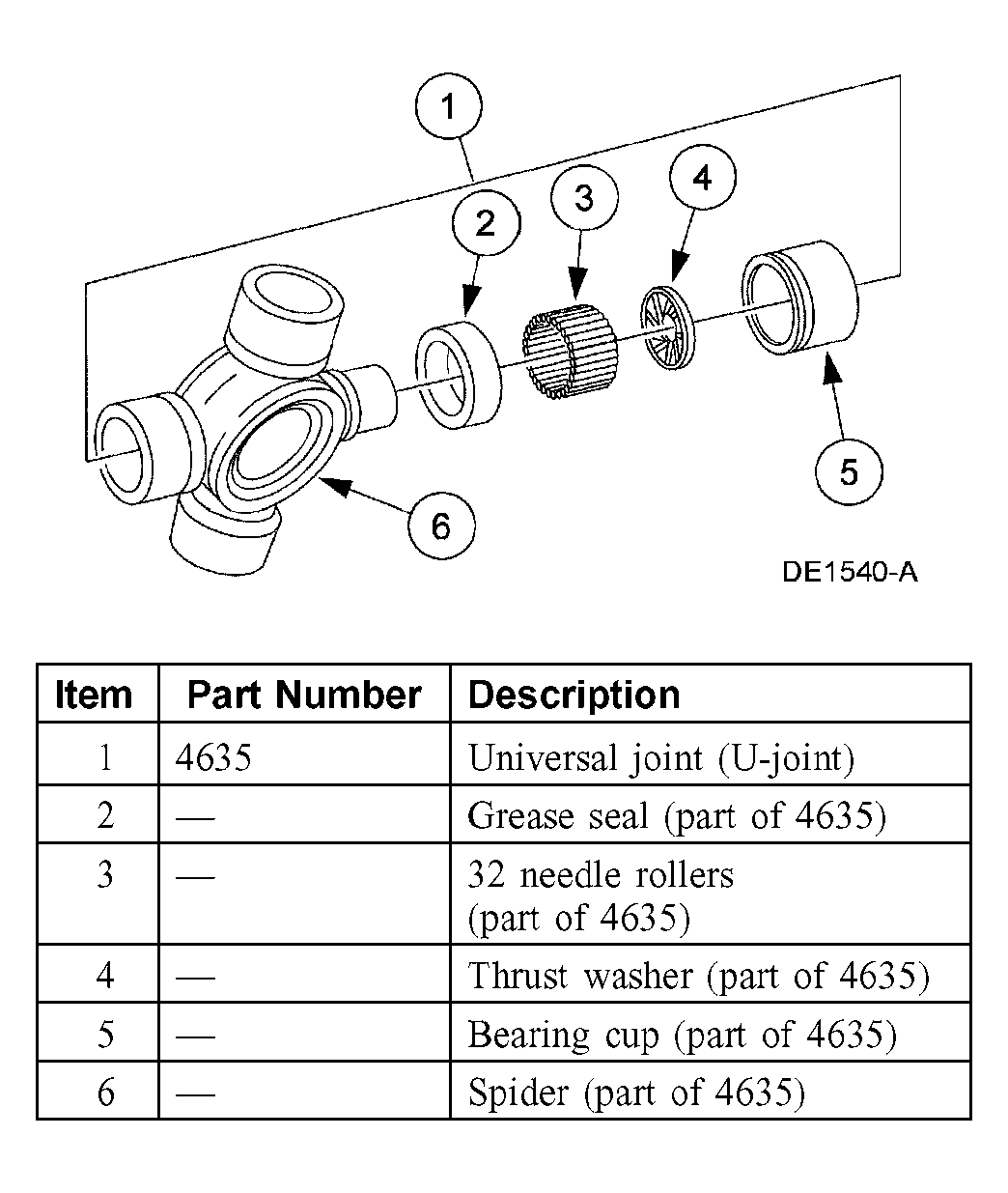

Fig 1: Identifying Universal Joints

Courtesy of FORD MOTOR CO.

Universal joints have the following features:

A lubed-for-life design.
Equipped with nylon thrust washers, located at the base of each bearing cup, which control end play, positions the needle bearings and improves grease movement.
Two types of universal joints: a Dana design and a Ford design.

Fig 2: Identifying Universal Joint Diameters
Courtesy of FORD MOTOR CO.

UNIVERSAL JOINT (U-JOINT) IDENTIFICATION CHART

Series	Diameter 1 (Spider Outer Diameter with Bearing Cups Fully Seated)	Diameter 2 (Bearing Cup Outer Diameter)
1350	91.9 mm (3.62 in)	30.2 mm (1.19 in)
1410	106.4 mm (4.19 in)	30.2 mm (1.19 in)
1480	106.4 mm (4.19 in)	35.1 mm (1.38 in)
