Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    Dual rear wheel brake disc

    NOTE: The brake disc is part of the hub on all dual rear wheel axle applications.
  1. Remove the hub assembly. For additional information on the Dana axle, refer to HUB . For additional information on the Ford axle, refer to HUB
  2. Remove the disc-to-hub bolts.

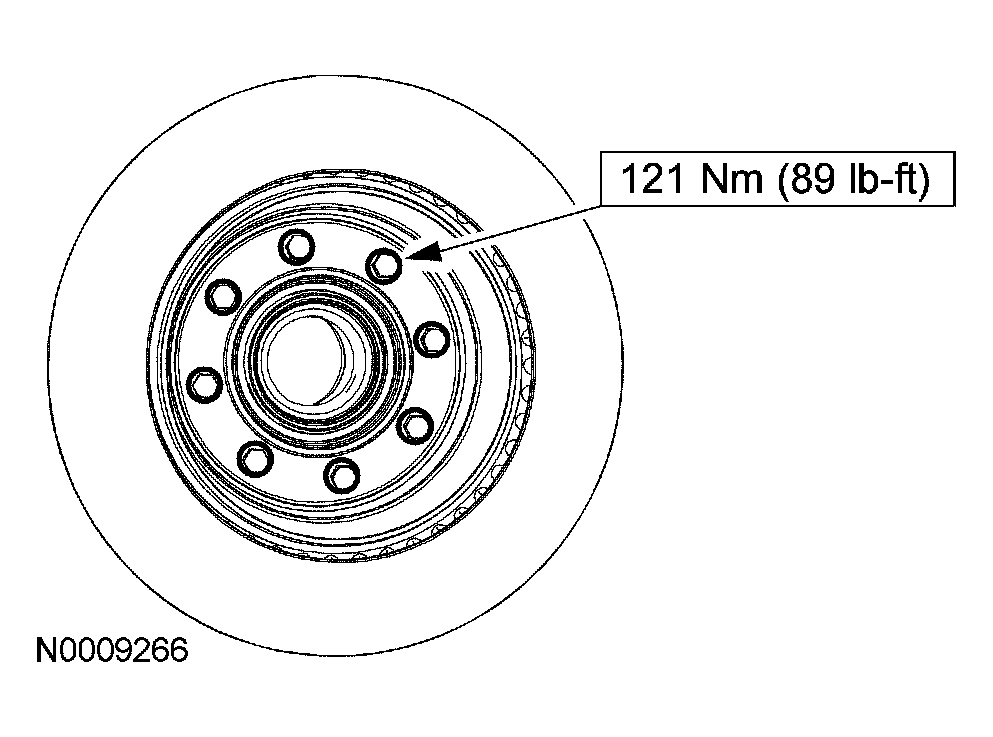

    Fig 1: Removing Disc-To-Hub Bolts
    G03919387Courtesy of FORD MOTOR CO.

    3. Single rear wheel brake disc

    CAUTION: When removing the brake caliper, never allow it to hang from the brake flexible hose. Provide a suitable support.

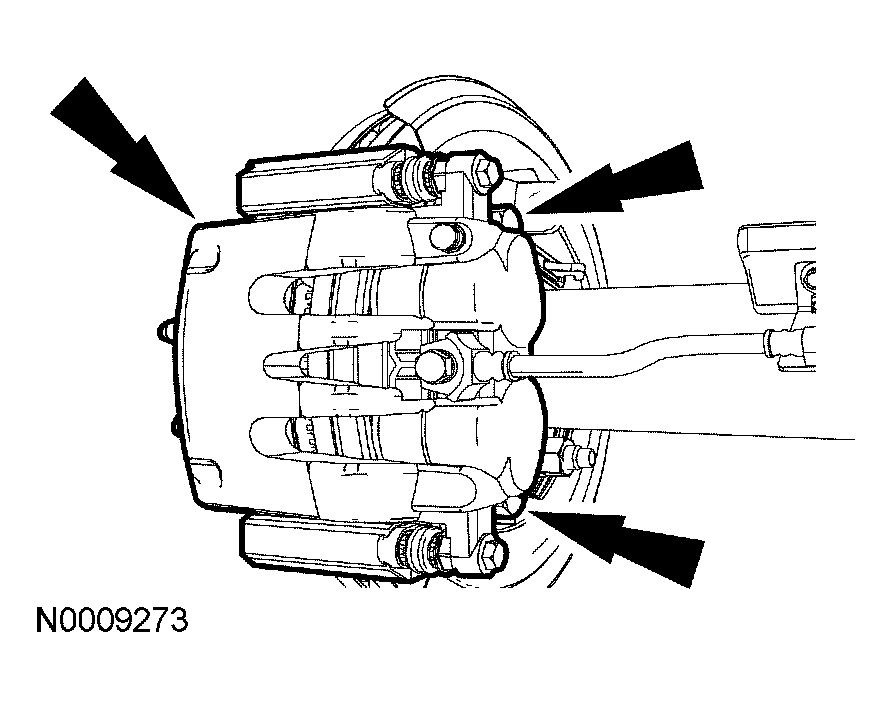

    Fig 2: Removing Anchor Plate Bolts And Brake Caliper And Anchor Plate Assembly
    G03919388Courtesy of FORD MOTOR CO.
  3. Remove the anchor plate bolts and the brake caliper and anchor plate assembly.
  4. Separate the brake disc from the hub.
  5. To install, reverse the removal procedure.
