Rear Brake Caliper: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Position the brake caliper and install the 2 brake caliper bolts.
- For F-250, F-350 single rear wheel caliper, tighten to 35 Nm (26 lb-ft).
- For F-350 dual rear wheel caliper, tighten to 76 Nm (56 lb-ft).
- For F-450, F-550 dual rear wheel caliper, tighten to 62 Nm (46 lb-ft).

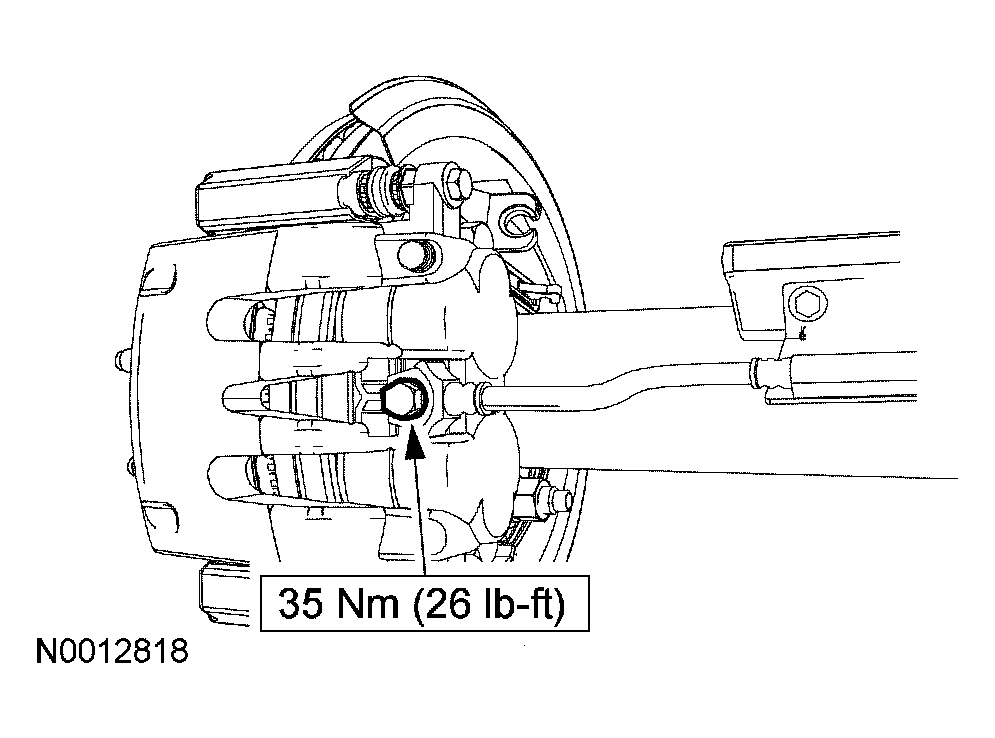

  Fig 1: Positioning Brake Caliper And Installing 2 Brake Caliper Bolts
  Courtesy of FORD MOTOR CO.
Position the brake flexible hose, install the brake caliper flow bolt and 2 new copper washers.

Fig 2: Positioning Brake Flexible Hose And Installing Brake Caliper Flow Bolt And 2 New Copper Washers
Courtesy of FORD MOTOR CO.
Bleed the brake system. For additional information, refer to BRAKE SYSTEM BLEEDING .
