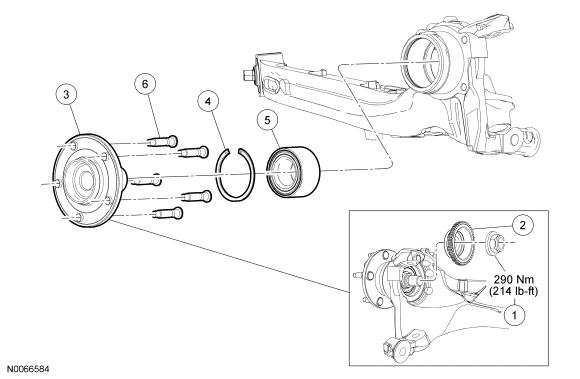

Wheel Bearing and Wheel Hub - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W705967 |
Wheel hub nut (front wheel drive [FWD]) |
| 2 |
2C186 |
ABS wheel speed sensor ring (FWD) |
| 3 |
1109 |
Wheel hub |
| 4 |
1069 |
Wheel bearing snap ring |
| 5 |
1225 |
Wheel bearing |
| 6 |
1107 |
Wheel studs |
- For additional information, refer to the following procedures.
