Serpentine Belt Routing (3.0L V6 VIN "S" - Except LS)

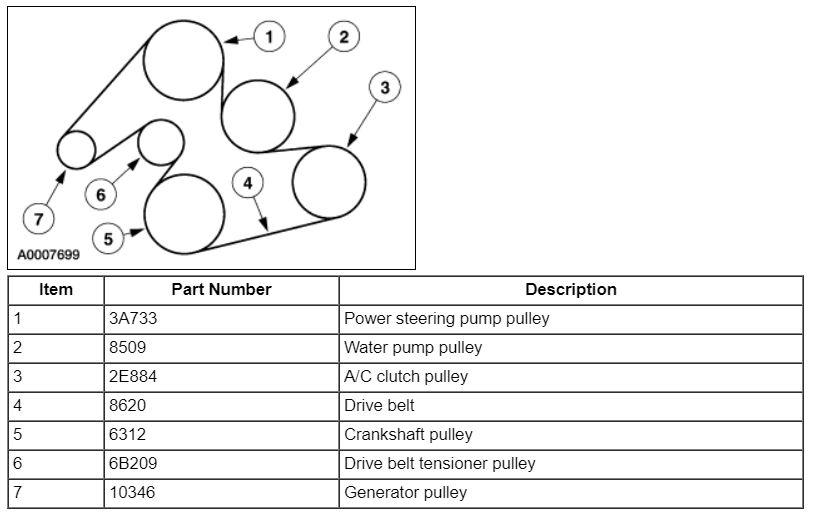

Fig 1: Serpentine Belt Routing (3.0L V6 VIN "S" - Except LS)

G00574315

Courtesy of FORD MOTOR CO.
